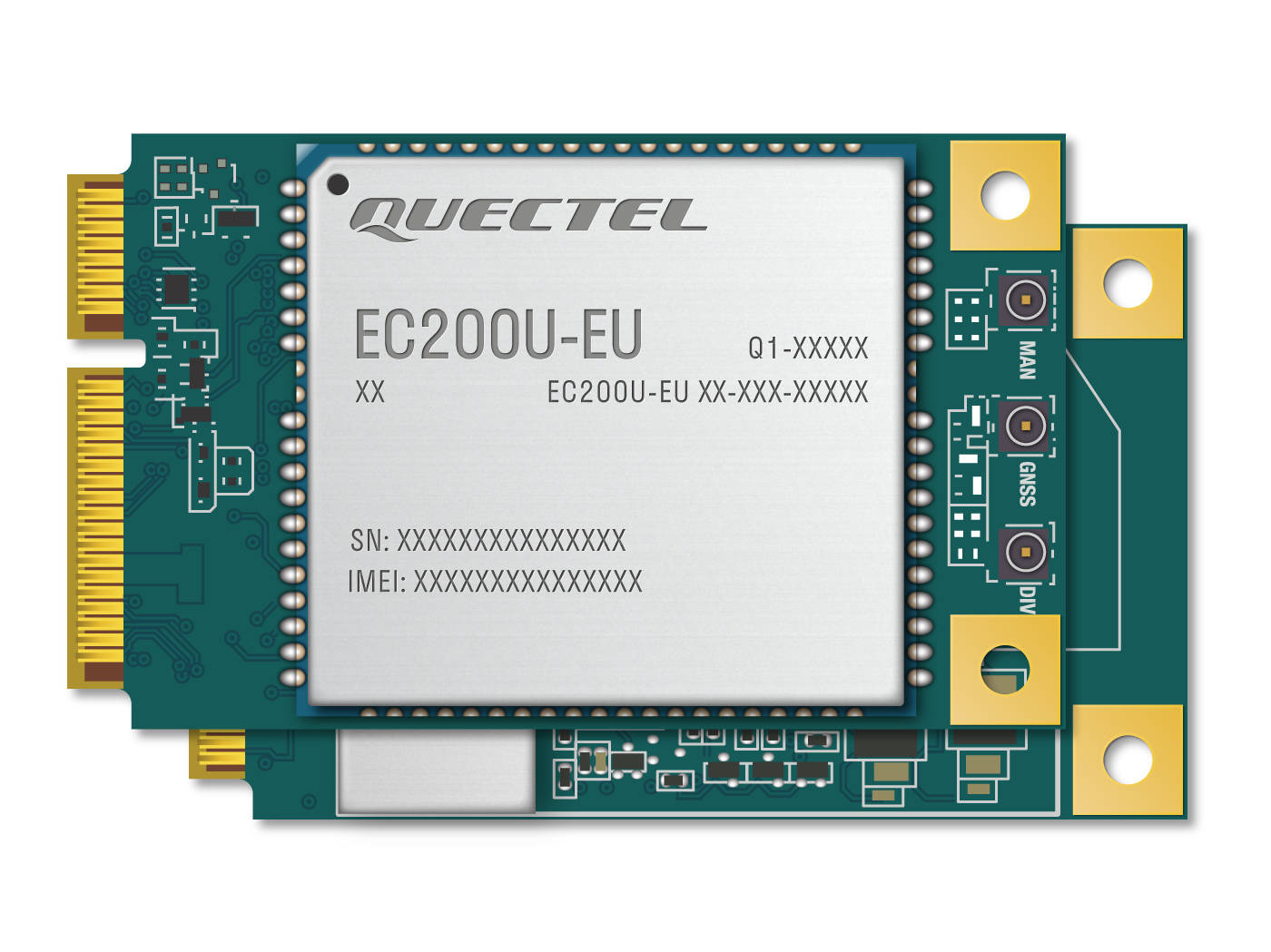

Quectel EC200U-EU Mini PCIe - LTE+BT+GNSS module
Form factorMini PCIe
CategoryCat 1
Max. data transfer8,96Mbps (DL)3,1Mbps (UL)
Product width in millimeters30
Product length in millimeters51
RegionEMEADetails
Parametry
Find similar products
Brand
Symbol
EC200UEUAA-N05-MN0AA
Producer code
5900000781044
Series
Form factor
Mini PCIe
Category
Cat 1
Max. data transfer
8,96Mbps (DL)
3,1Mbps (UL)
Technology
GNSS
LTE
BT 4.2
Temperature range
-35...+75°C
Product height in millimetres
4.9
Product width in millimeters
30
Product length in millimeters
51
Voltage
3,0 - 3,6V
Region
EMEA
Quectel EC200U-EU Mini PCIe
A 4G module by Quectel, with Mini PCIe form factor, supporting LTE standards of communication with fallback in 2G. Max data rate: 8.96Mbps (DL), 3.1Mbps (UL). The module also supports Bluetooth 4.2 and GNSS navigation (GPS/ BDS/ Galileo/ GLONASS/ QZSS).
-
Supports frequency bands:
- LTE-FDD: B1/3/5/7/8/20/28
- LTE-TDD: B38/40/41
- GSM: B2/3/5/8
The product can operate in temperature range of -35... +75°C, and it's power supply is 3.0 - 3.6V, typ. 3.3V.
