Quectel BG951A-GL - LPWA module
Form factorLGA
Max. data transfer588 Kbps (DL)1119 Kbps (UL)
Product width in millimeters19.9
Product length in millimeters23.6Details
Parametry
Find similar products
Brand
Symbol
BG951AGLAA-N06-SGNSA
Producer code
5900000797526
Series
Form factor
LGA
Max. data transfer
588 Kbps (DL)
1119 Kbps (UL)
Technology
NB-IoT
LTE-M
GNSS
Temperature range
-35...+75°C
Product height in millimetres
2.2
Product width in millimeters
19.9
Product length in millimeters
23.6
Voltage
2,2 - 4,35V

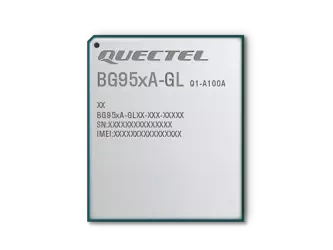

Quectel BG951A-GL
An ultra-compact LPWA module by Quectel, with an LGA form factor; supporting NB-IoT and LTE-M standards of communication, with max data rate: 588Kbps (DL), 1119Kbps (UL), as well as GNSS navigation (GPS/GLONASS/Galileo/BDS/QZSS). The module features LTE & GNSS concurrency.
-
Supports frequency bands:
- Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66
- Cat NB1: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66
The product can operate in temperature range of -35... +75°C, and it's power supply is 2.2 - 4.35V, typ. 3.3V.
