Powertip PH800480T033-IHC11 - CTP display
MatrixTFT
Screen diagonal (inch)5
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeCTP (borderless)
Luminance in cd/m2850
Controller (IC)None
Video interfaceRGB 24-bitLog in
Details
Parametry
Find similar products
Brand
Symbol
PH800480T033-IHC11
Matrix
TFT
Screen diagonal (inch)
5
Graphics display resolution standard
WVGA
Resolution (px)
800 x 480
Aspect ratio
5:3
Touch panel type
CTP (borderless)
Luminance in cd/m2
850
Controller (IC)
None
Video interface
RGB 24-bit
Viewing angles
60/60/60/60
Viewing direction
6H
Lens thickness
0,7 mm
Touch panel interface
I2C
Touch panel controller (IC)
Hycon HY4635
Temperature range
-20...+70°C
Voltage
3.3V
Powertip PH800480T033-IHC11
A 5" TFT display with a capacitive touch panel, created by Powertip. The display has 800 x 480 WVGA resolution and 24-bit RGB interface. Brightness: 850. Operating temperature range -20...+70°C.

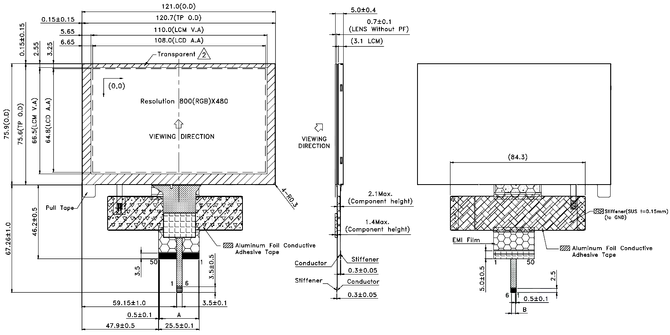

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
