Powertip PH800480T033-IHB - TFT display
Powertip PH800480T033-IHB - TFT display
Powertip PH800480T033-IHB - TFT display
Powertip PH800480T033-IHB - TFT display

Powertip PH800480T033-IHB - TFT display

MatrixTFT
Screen diagonal (inch)5
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeRTP
Luminance in cd/m2780
Controller (IC)Brak
Video interface24-bit RGB
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare

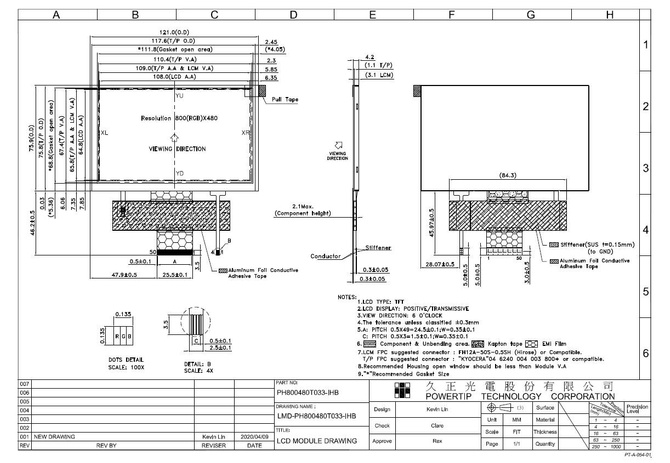

Product Data Sheet - PH800480T033-IHB
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH800480T033-IHB
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
5
Graphics display resolution standardGraphics display resolution standard
WVGA
Resolution (px)Resolution (px)
800 x 480
Aspect ratio
15:9
Touch panel typeTouch panel type
RTP
Luminance in cd/m2Luminance in cd/m2
780
Controller (IC)Controller (IC)
Brak
Video interfaceVideo interface
24-bit RGB
Viewing angles
60/60/60/60
Viewing direction
6H
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3.3V
Search

Powertip PH800480T033-IHB

A 5" TFT display created by Powertip with 800 x 480 WVGA resolution, a 24-bit RGB interface and a resistive touch panel. Brightness: 780. Operating temperature range -20...+70°C.

The product is part of 4-in-1 series, aiming to streamline display integration with the end product design by allowing the use of the same pin assignment and connector, with different sizes of displays (3.5″, 4.3″, 5.0″, 7.0"). The products in this series have high brightness and are available in touch panel and non-touch panel versions.
