Powertip PH800480T032-ZHR - full viewing angle display
MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeCTP
Luminance in cd/m2800
Controller (IC)HX8249 + HX8678
Video interfaceParallel RGBSPIDetails
Parametry
Find similar products
Brand
Symbol
PH800480T032-ZHR
Matrix
TFT
Screen diagonal (inch)
7
Graphics display resolution standard
WVGA
Resolution (px)
800 x 480
Aspect ratio
5:3
Touch panel type
CTP
Luminance in cd/m2
800
Controller (IC)
HX8249 + HX8678
Video interface
Parallel RGB
SPI
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range
-20...+70°C
Voltage
3.3V
Lens thickness
1,8 mm
Powertip PH800480T032-ZHR
PH800480T032-ZHR, 7” TFT with full viewing angle display and capacitive touch panel (CTP-GG). Brightness: 800. 800 x 480 resolution with WVGA standard, 5:3 aspect ratio, SPI and Parallel RGB interface.

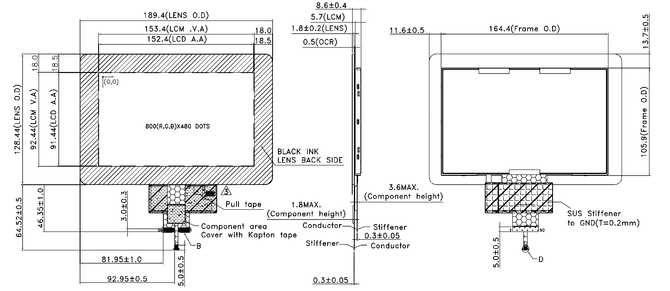

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
