Powertip PH800480T032-ZHC12 - full viewing angle display
MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeCTP
Luminance in cd/m2800
Controller (IC)HX8249-A02 + HX8678-C
Video interface24-bit RGBDetails
Parametry
Find similar products
Brand
Symbol
PH800480T032-ZHC12
Matrix
TFT
Screen diagonal (inch)
7
Graphics display resolution standard
WVGA
Resolution (px)
800 x 480
Aspect ratio
5:3
Touch panel type
CTP
Luminance in cd/m2
800
Controller (IC)
HX8249-A02 + HX8678-C
Video interface
24-bit RGB
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range
-20...+70°C
Voltage
3.3V
Lens thickness
2 mm
Powertip PH800480T032-ZHC12
PH800480T032-ZHC12, 7” TFT with full viewing angle display and capacitive touch panel (CTP). Brightness: 800. 800 x 480 resolution with WVGA standard, 5:3 aspect ratio, 24 bit RGB interface.

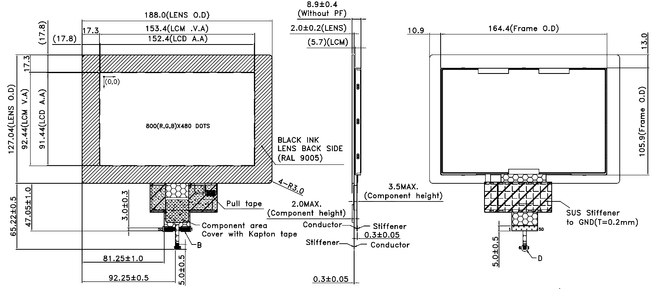

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
