Powertip PH800480T032-ZHA - full viewing angle display
MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeNone
Luminance in cd/m21000
Controller (IC)HX8249 + HX8678
Video interface24-bit RGBDetails
Parametry
Find similar products
Brand
Symbol
PH800480T032-ZHA
Matrix
TFT
Screen diagonal (inch)
7
Graphics display resolution standard
WVGA
Resolution (px)
800 x 480
Aspect ratio
5:3
Touch panel type
None
Luminance in cd/m2
1000
Controller (IC)
HX8249 + HX8678
Video interface
24-bit RGB
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range
-20...+70°C
Voltage
3.3V
Lens thickness
No data
Powertip PH800480T032-ZHA
PH800480T032-ZFA, 7” TFT with full viewing angle display. Brightness: 1000. 800 x 480 resolution with WVGA standard, 5:3 aspect ratio, 24 bit RGB interface.

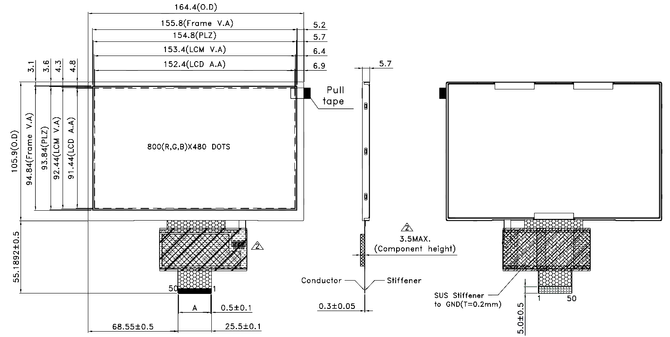

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
