Powertip PH800480T030-ZHA01 - full viewing angle display
MatrixTFT
Screen diagonal (inch)5
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeNone
Luminance in cd/m21000
Controller (IC)Sitronix ST7262
Video interfaceRGB 24-bitLog in
Details
Parametry
Find similar products
Brand
Symbol
PH800480T030-ZHA01
Producer code
5900000824789
Matrix
TFT
Screen diagonal (inch)
5
Graphics display resolution standard
WVGA
Resolution (px)
800 x 480
Aspect ratio
15:9
Touch panel type
None
Luminance in cd/m2
1000
Controller (IC)
Sitronix ST7262
Video interface
RGB 24-bit
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range
-20...+70°C
Voltage
3.3V
Powertip PH800480T030-ZHA01
A 5" TFT full viewing angle display, created by Powertip. The display has a 800 x 480 WVGA resolution and a 24 bit RGB interface. Brightness: 1000. Operating temperature range -20...+70°C.
The product is part of 4-in-1 series, aiming to streamline display integration with the end product design by allowing the use of the same pin assignment and connector, with different sizes of displays (3.5″, 4.3″, 5.0″, 7.0"). The products in this series have high brightness and are available in touch panel and non-touch panel versions.

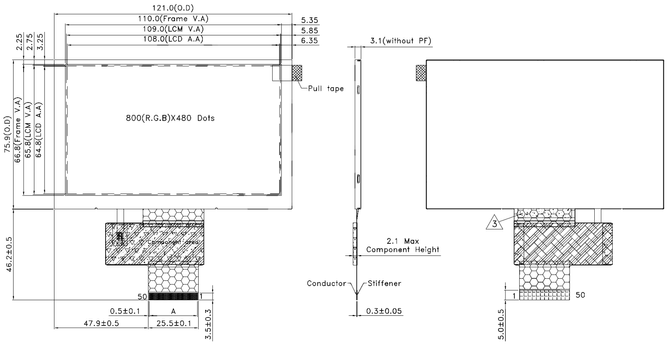

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
