Powertip PH800480T030-ZFA - full viewing angle display
MatrixTFT
Screen diagonal (inch)5
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeNone
Luminance in cd/m2600
Controller (IC)Sitronix ST7262
Video interfaceSPIRGB 24-bitLog in
Details
Parametry
Find similar products
Brand
Symbol
PH800480T030-ZFA
Matrix
TFT
Screen diagonal (inch)
5
Graphics display resolution standard
WVGA
Resolution (px)
800 x 480
Aspect ratio
15:9
Touch panel type
None
Luminance in cd/m2
600
Controller (IC)
Sitronix ST7262
Video interface
SPI
RGB 24-bit
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range
-20...+70°C
Voltage
3.3V
Lens thickness
No data
Powertip PH800480T030-ZFA
A 5" TFT full viewing angle display, created by Powertip. The display has a 800 x 480 WVGA resolution and a SPI and Parallel RGB interface. Brightness: 600. Operating temperature range -20...+70°C.

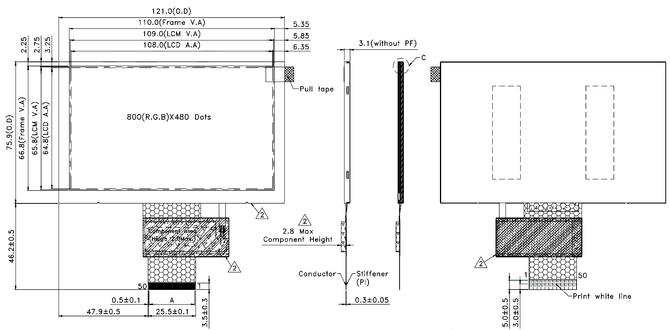

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
