Powertip PH800480T029-IHA - TFT display
MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeNone
Luminance in cd/m21000
Controller (IC)ILI6137A-00T0041 + ILI5960-9G
Video interfaceRGB 24-bitLog in
Details
Parametry
Find similar products
Brand
Symbol
PH800480T029-IHA
Matrix
TFT
Screen diagonal (inch)
7
Graphics display resolution standard
WVGA
Resolution (px)
800 x 480
Aspect ratio
5:3
Touch panel type
None
Luminance in cd/m2
1000
Controller (IC)
ILI6137A-00T0041 + ILI5960-9G
Video interface
RGB 24-bit
Viewing angles
60/60/60/60
Viewing direction
6H
Temperature range
-30...+80°C
Voltage
3.3V
Powertip PH800480T029-IHA
A 7" TFT display, created by Powertip. The display has a 800 x 480 WVGA resolution and a 24 bit RGB interface. Brightness: 1000. Operating temperature range -30...+80°C.

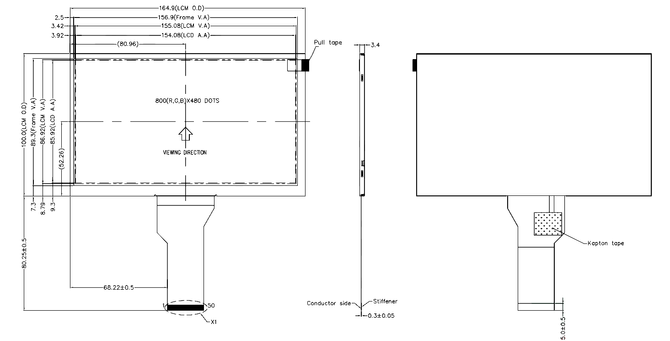

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
