Powertip PH800480T029-IFA01 - TFT display
MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeNone
Luminance in cd/m2500
Controller (IC)ILI6137A + ILI5960
Video interfaceParallel RGBSPIDetails
Parametry
Find similar products
Brand
Symbol
PH800480T029-IFA01
Matrix
TFT
Screen diagonal (inch)
7
Graphics display resolution standard
WVGA
Resolution (px)
800 x 480
Aspect ratio
5:3
Touch panel type
None
Luminance in cd/m2
500
Controller (IC)
ILI6137A + ILI5960
Video interface
Parallel RGB
SPI
Viewing angles
60/60/60/60
Viewing direction
6H
Temperature range
-20...+70°C
Voltage
3.3V
Powertip PH800480T029-IFA01
A 7" TFT display, created by Powertip. The display has a 800 x 480 WVGA resolution and a SPI and Parallel RGB interface. Brightness: 500. Operating temperature range -20...+70°C.

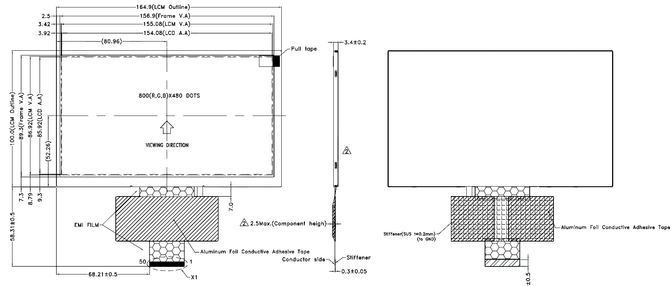

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
