Powertip PH800480T029-IAC01 - CTP display
Powertip PH800480T029-IAC01 - CTP display
Powertip PH800480T029-IAC01 - CTP display
Powertip PH800480T029-IAC01 - CTP display

Powertip PH800480T029-IAC01 - CTP display

MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeCTP
Luminance in cd/m2300
Controller (IC)ILI6137A + ILI5960
Video interfaceRGB 24-bit
excl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Symbol
PH800480T029-IAC01
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
7
Graphics display resolution standardGraphics display resolution standard
WVGA
Resolution (px)Resolution (px)
800 x 480
Aspect ratio
5:3
Touch panel typeTouch panel type
CTP
Luminance in cd/m2Luminance in cd/m2
300
Controller (IC)Controller (IC)
ILI6137A + ILI5960
Video interfaceVideo interface
RGB 24-bit
Viewing angles
60/60/60/60
Viewing direction
6H
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3.3V
Lens thickness
0,7 mm
Touch panel controller (IC)Touch panel controller (IC)
Chipone ICNT8952
Touch panel interface
I2C
Search

Powertip PH800480T029-IAC01

A 7" CTP display, created by Powertip. The display has a 800 x 480 WVGA resolution and a 24 bit RGB interface. Brightness: 300. Operating temperature range -20...+70°C.

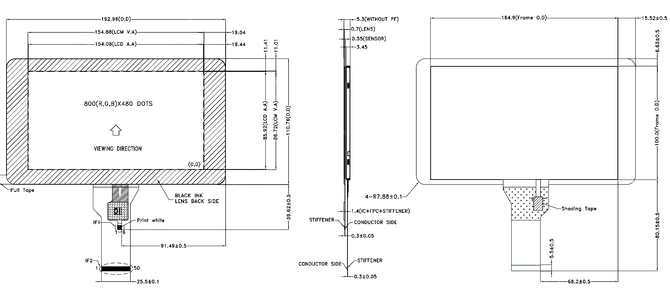

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
