Powertip PH800480T028-ZFA - full viewing angle display
MatrixTFT
Screen diagonal (inch)4,3
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeNone
Luminance in cd/m2500
Controller (IC)Ilitek ILI6128BT + ILI5960T
Video interface24-bit RGBDetails
Parametry
Find similar products
Brand
Symbol
PH800480T028-ZFA
Producer code
5900000824673
Matrix
TFT
Screen diagonal (inch)
4,3
Graphics display resolution standard
WVGA
Resolution (px)
800 x 480
Aspect ratio
15:9
Touch panel type
None
Luminance in cd/m2
500
Controller (IC)
Ilitek ILI6128BT + ILI5960T
Video interface
24-bit RGB
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range
-30...+80°C
Voltage
3.3V
Powertip PH800480T028-ZFA
A 4.3" TFT full viewing angle display, created by Powertip. The display has a 800 x 480 WVGA resolution and a 24 bit RGB interface. Brightness: 500. Operating temperature range -30...+80°C.

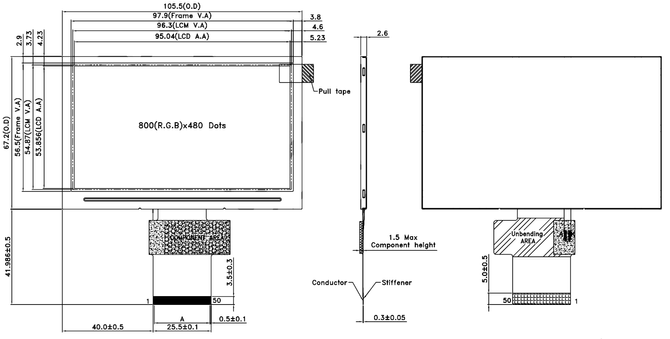

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
