Powertip PH800480T013-IAC27 - CTP display
Powertip PH800480T013-IAC27 - CTP display
Powertip PH800480T013-IAC27 - CTP display
Powertip PH800480T013-IAC27 - CTP display

Powertip PH800480T013-IAC27 - CTP display

MatrixTFT
Screen diagonal (inch)7
Graphics display resolution standardWVGA
Resolution (px)800 x 480
Touch panel typeCTP-GG
Luminance in cd/m2320
Controller (IC)None
Video interfaceRGB 24-bit
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare

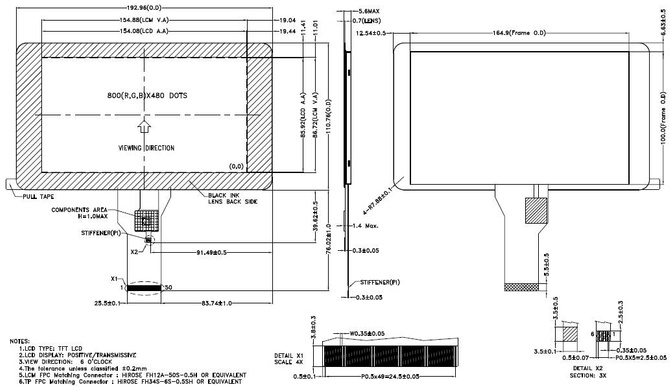

Product Data Sheet - PH800480T013-IAC27
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH800480T013-IAC27
Producer code
5900000824512
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
7
Graphics display resolution standardGraphics display resolution standard
WVGA
Resolution (px)Resolution (px)
800 x 480
Aspect ratio
15:9
Touch panel typeTouch panel type
CTP-GG
Luminance in cd/m2Luminance in cd/m2
320
Controller (IC)Controller (IC)
None
Video interfaceVideo interface
RGB 24-bit
Viewing angles
50/70/70/70
Viewing direction
6H
Lens thickness
0,7 mm
Touch panel controller (IC)Touch panel controller (IC)
Chipone ICNT8952
Touch panel interface
I2C
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3.3V
Search

Powertip PH800480T013-IAC27

A 7" TFT display with a capacitive touch panel, created by Powertip. The display has 800 x 480 WVGA resolution and a 24 bit RGB interface. Brightness: 320. Operating temperature range -20...+70°C.
