Brand
Symbol
PH800480T007-IHC01
Producer code
5900000824475
Matrix

TFT
Screen diagonal (inch)

7
Graphics display resolution standard

WVGA
Resolution (px)

800 x 480
Aspect ratio
15:9
Touch panel type

CTP-GG
Luminance in cd/m2

800
Controller (IC)

Himax HX8262-A + HX8678-A
Video interface

24-bit RGB
Viewing angles
35/35/45/45
Viewing direction
6H
Lens thickness
0,7 mm
Touch panel interface
I2C
Touch panel controller (IC)

Hycon HY4635
Temperature range

-20...+70°C
Voltage

3.3V
Powertip PH800480T007-IHC01
A 7" TFT display with a capacitive touch panel, created by Powertip. The display has 800 x 480 WVGA resolution and a 24 bit RGB interface. Brightness: 800. Operating temperature range -20...+70°C.
The product is part of 4-in-1 series, aiming to streamline display integration with the end product design by allowing the use of the same pin assignment and connector, with different sizes of displays (3.5″, 4.3″, 5.0″, 7.0"). The products in this series have high brightness and are available in touch panel and non-touch panel versions.

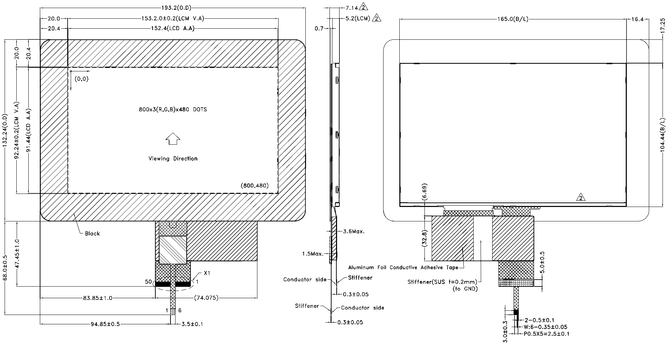

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
