Powertip PH480480T001-ZHA - full viewing angle display
Details
Parametry
Find similar products
Brand
Symbol
PH480480T001-ZHA
Matrix
TFT
Screen diagonal (inch)
4
Resolution (px)
480 x 480
Aspect ratio
1:1
Touch panel type
None
Luminance in cd/m2
1000
Controller (IC)
ST7701S
Video interface
16/18/24-bit RGB
SPI-3
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range
-30...+85°C
Voltage
3.3V
Powertip PH480480T001-ZHA
A 4" TFT full viewing angle display, created by Powertip. The display has 480 x 480 resolution and supports 16/18/24-bit RGB and SPI-3 interface. Brightness: 1000. Operating temperature range -30...+85°C.

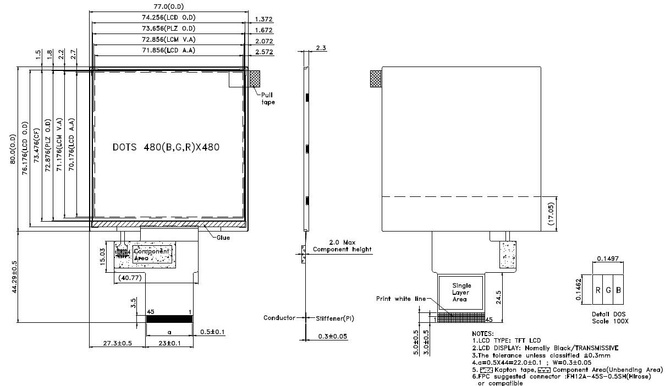

The photograph is for illustrative purposes only. To see the final product, check the drawing in the gallery or download the documentation.
