Powertip PH480272T016-ZAA - full viewing angle display
MatrixTFT
Screen diagonal (inch)4.3
Graphics display resolution standardWQVGA
Resolution (px)480 x 272
Touch panel typeNone
Luminance in cd/m2265
Controller (IC)Sitronix ST7796S
Video interface24-bit RGBDetails
Parametry
Find similar products
Brand
Symbol
PH480272T016-ZAA
Matrix
TFT
Screen diagonal (inch)
4.3
Graphics display resolution standard
WQVGA
Resolution (px)
480 x 272
Aspect ratio
3:2
Touch panel type
None
Luminance in cd/m2
265
Controller (IC)
Sitronix ST7796S
Video interface
24-bit RGB
Viewing angles
80/80/80/80
Viewing direction
Full
Lens thickness
0,7 mm
Touch panel controller (IC)
No data
Temperature range
-20...+70°C
Voltage
3.3V
Powertip PH480272T016-ZAA
A 4.3" TFT full viewing angle display, created by Powertip. The display has a 480 x 272 WQVGA resolution and a 24 bit RGB interface. Brightness: 465. Operating temperature range -20...+70°C.

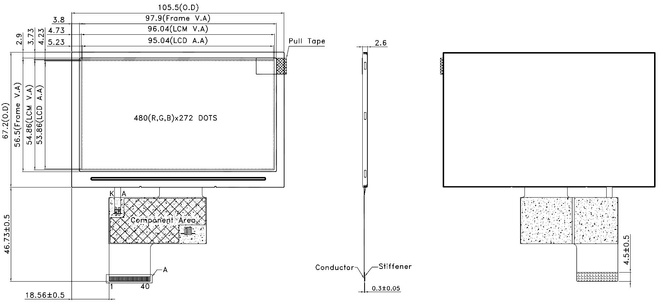

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
