Powertip PH320480T009-LAA01 - TFT display
Powertip PH320480T009-LAA01 - TFT display
Powertip PH320480T009-LAA01 - TFT display
Powertip PH320480T009-LAA01 - TFT display

Powertip PH320480T009-LAA01 - TFT display

MatrixTFT
Screen diagonal (inch)3.5
Graphics display resolution standardHVGA
Resolution (px)320 x 480
Aspect ratio3:2
Touch panel typeNone
Luminance in cd/m2430
Controller (IC)Sitronix ST7796S
Video interfaceRGB 18-bitRGB 16-bitSPIMIPI 1-LaneParallel 8080 18-bitParallel 8080 16-bitParallel 8080 9-bitParallel 8080 8-bit
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - PH320480T009-LAA01
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH320480T009-LAA01
Producer code
5900000823805
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
3.5
Graphics display resolution standardGraphics display resolution standard
HVGA
Resolution (px)Resolution (px)
320 x 480
Aspect ratio
3:2
Touch panel typeTouch panel type
None
Luminance in cd/m2Luminance in cd/m2
430
Controller (IC)Controller (IC)
Sitronix ST7796S
Video interfaceVideo interface
RGB 18-bit
RGB 16-bit
SPI
MIPI 1-Lane
Parallel 8080 18-bit
Parallel 8080 16-bit
Parallel 8080 9-bit
Parallel 8080 8-bit
Viewing angles
60/60/60/60
Viewing direction
12H
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
2,8V
Search

Powertip PH320480T009-LAA01

A TFT display created by Powertip with 320 x 480 HVGA resolution, 3,5" and multiple interfaces. Operating temperature range -20...+70°C.

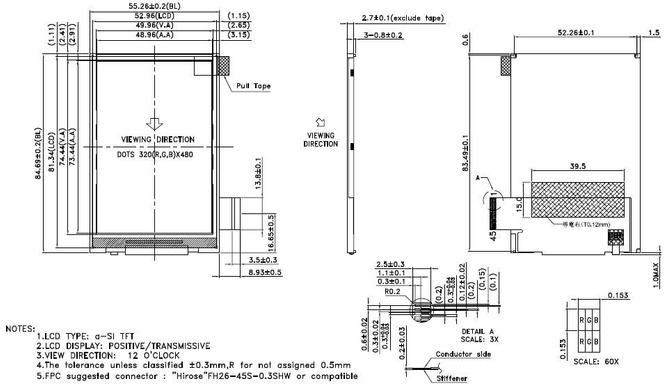

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.

pixel
