Powertip PH320240T028-ZHC10 - full viewing angle display
MatrixTFT
Screen diagonal (inch)3.5
Graphics display resolution standardQVGA
Resolution (px)320 x 240
Touch panel typeCTP
Luminance in cd/m21000
Controller (IC)Sitronix ST7272A
Video interfaceRGB 24-bitLog in
Details
Parametry
Find similar products
Brand
Symbol
PH320240T028-ZHC10
Matrix
TFT
Screen diagonal (inch)
3.5
Graphics display resolution standard
QVGA
Resolution (px)
320 x 240
Aspect ratio
4:3
Touch panel type
CTP
Luminance in cd/m2
1000
Controller (IC)
Sitronix ST7272A
Video interface
RGB 24-bit
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range
-20...+70°C
Voltage
3.3V
Lens thickness
2 mm
Touch panel interface
I2C
Touch panel controller (IC)
Ilitek ILI2130
Powertip PH320240T028-ZHC10
A 3.5" TFT full viewing angle display with capacitive touch panel (CTP), created by Powertip. The display has a 320 x 240 QVGA resolution and a 24 bit RGB interface. Brightness: 800. Operating temperature range -20...+70°C.

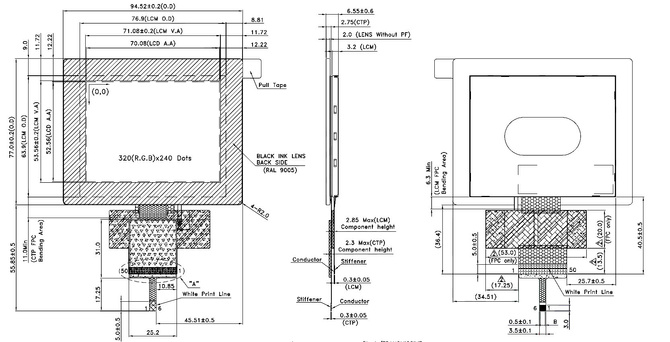

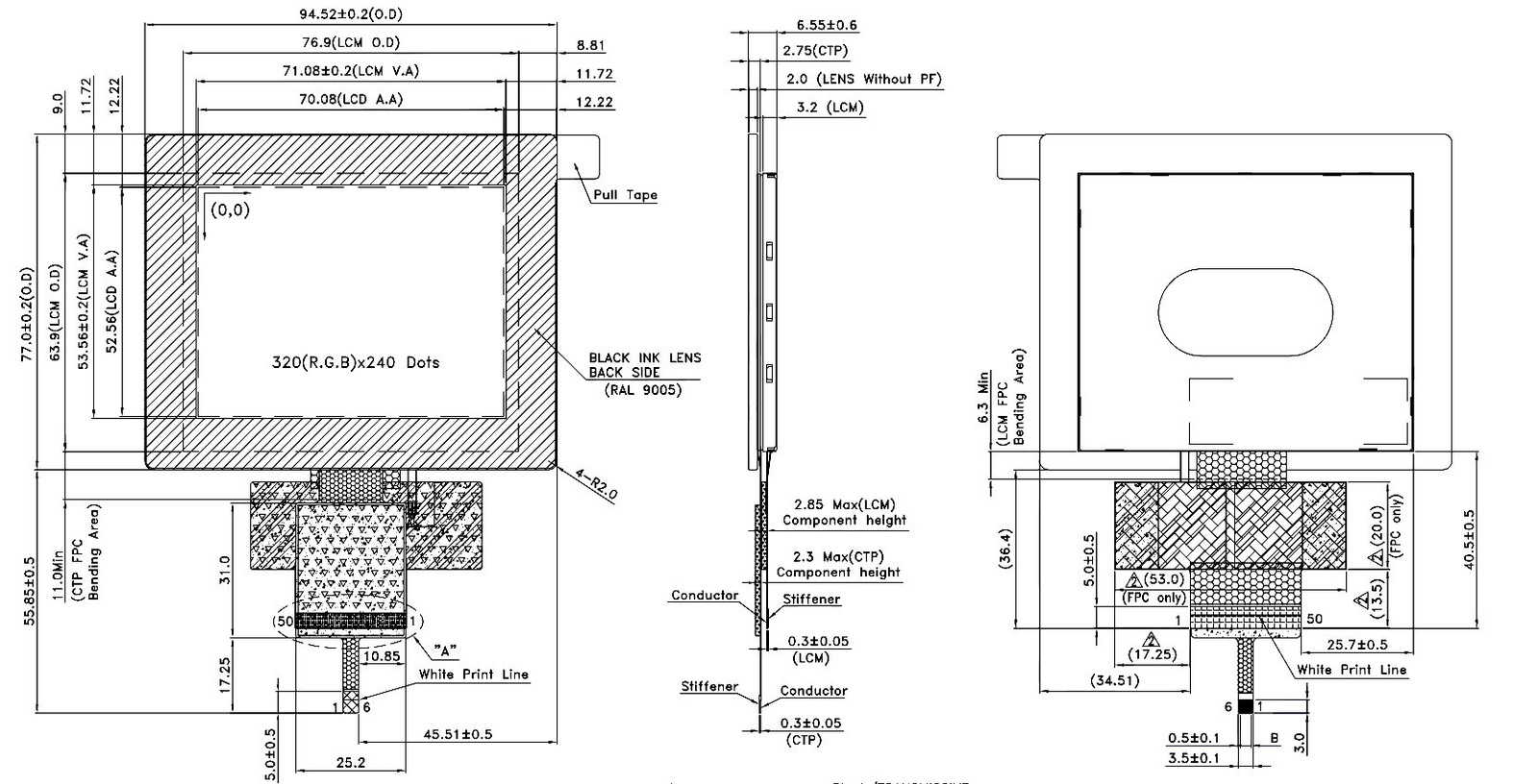

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
