Powertip PH320240T028-ZFA06 - full viewing angle display
MatrixTFT
Screen diagonal (inch)3.5
Graphics display resolution standardLQVGA
Resolution (px)320 x 240
Touch panel typeNone
Luminance in cd/m2560
Controller (IC)Sitronix ST7272A
Video interfaceParallel RGBSPIDetails
Parametry
Find similar products
Brand
Symbol
PH320240T028-ZFA06
Matrix
TFT
Screen diagonal (inch)
3.5
Graphics display resolution standard
LQVGA
Resolution (px)
320 x 240
Aspect ratio
4:3
Touch panel type
None
Luminance in cd/m2
560
Controller (IC)
Sitronix ST7272A
Video interface
Parallel RGB
SPI
Viewing angles
80/80/80/80
Viewing direction
Full
Temperature range
-20...+70°C
Voltage
3.3V
Lens thickness
No data
Powertip PH320240T028-ZFA06
A 3.5" TFT full viewing angle display, created by Powertip. The display has a 320 x 240 LQVGA resolution and a SPI and Parallel RGB interface. Brightness: 560. Operating temperature range -20...+70°C.

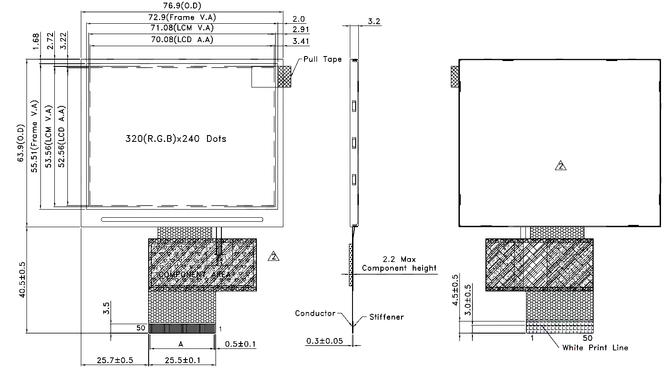

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
