Powertip PH320240T-009-IC1Q - TFT display
Powertip PH320240T-009-IC1Q - TFT display
Powertip PH320240T-009-IC1Q - TFT display
Powertip PH320240T-009-IC1Q - TFT display

Powertip PH320240T-009-IC1Q - TFT display

MatrixTFT
Screen diagonal (inch)5.7
Graphics display resolution standardLQVGA
Resolution (px)320 x 240
Aspect ratio4:3
Touch panel typeNone
Luminance in cd/m2850
Controller (IC)None
Video interface18-bit RGB
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - PH320240T-009-IC1Q
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH320240T-009-IC1Q
Producer code
5900000824079
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
5.7
Graphics display resolution standardGraphics display resolution standard
LQVGA
Resolution (px)Resolution (px)
320 x 240
Aspect ratio
4:3
Touch panel typeTouch panel type
None
Luminance in cd/m2Luminance in cd/m2
850
Controller (IC)Controller (IC)
None
Video interfaceVideo interface
18-bit RGB
Viewing angles
60/60/60/60
Viewing direction
6H
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3.3V
Search

Powertip PH320240T-009-IC1Q

A TFT display created by Powertip with 320 x 240 LQVGA resolution, 5.7" and a 18-bit RGB interface. Brightness: 850. Operating temperature range -20...+70°C.

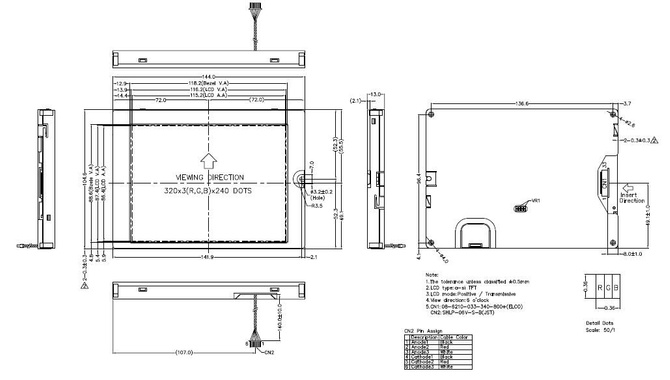

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.

This product is NOT RECOMMENDED for new designs.

pixel
