Powertip PH240320T068-LAC10 - CTP display
MatrixTFT
Screen diagonal (inch)2.8
Graphics display resolution standardQVGA
Resolution (px)240 x 320
Touch panel typeCTP-GG
Luminance in cd/m2300
Controller (IC)Sitronix ST7789VI
Video interfaceParallel 8080 16-bitParallel 8080 8-bitLog in
Details
Parametry
Find similar products
Brand
Symbol
PH240320T068-LAC10
Producer code
5900000824222
Matrix
TFT
Screen diagonal (inch)
2.8
Graphics display resolution standard
QVGA
Resolution (px)
240 x 320
Aspect ratio
4:3
Touch panel type
CTP-GG
Luminance in cd/m2
300
Controller (IC)
Sitronix ST7789VI
Video interface
Parallel 8080 16-bit
Parallel 8080 8-bit
Viewing angles
60/60/60/60
Viewing direction
12H
Temperature range
-20...+70°C
Voltage
2,8V
Lens thickness
0,7 mm
Touch panel controller (IC)
Sitronix ST1624
Touch panel interface
I2C
Powertip PH240320T068-LAC10
A 2.8" TFT display with a capacitive touch panel (CTP), created by Powertip. The display has 240 x 320 QVGA resolution and an 80-8/16 bit interface. Lens thickness 0.7. Brightness: 300. Operating temperature range -20...+70°C.

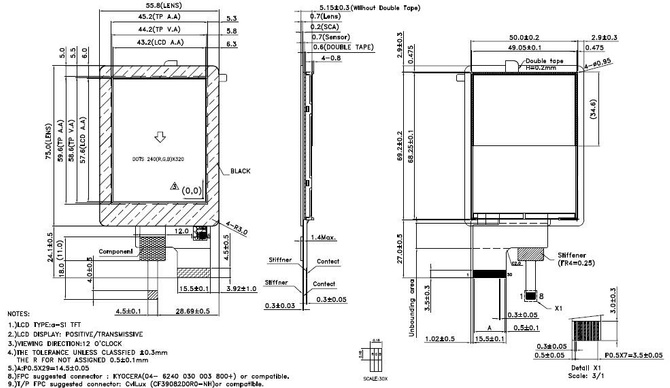

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
