Powertip PH240320T068-LAA08 - TFT display
MatrixTFT
Screen diagonal (inch)2.8
Graphics display resolution standardQVGA
Resolution (px)240 x 320
Touch panel typeNone
Luminance in cd/m2330
Controller (IC)ILI9341
Video interfaceParallel 8080 18-bitRGB 18-bitSPILog in
Details
Parametry
Find similar products
Brand
Symbol
PH240320T068-LAA08
Matrix
TFT
Screen diagonal (inch)
2.8
Graphics display resolution standard
QVGA
Resolution (px)
240 x 320
Aspect ratio
4:3
Touch panel type
None
Luminance in cd/m2
330
Controller (IC)
ILI9341
Video interface
Parallel 8080 18-bit
RGB 18-bit
SPI
Viewing angles
60/60/60/60
Viewing direction
12H
Temperature range
-20...+70°C
Lens thickness
0,4 mm
Voltage
2,8V
Powertip PH240320T068-LAA08
A TFT display created by Powertip with 240 x 320 QVGA resolution, 2,8", with MCU parallel, RGB and SPI interface. Operating temperature range -20...+70°C.

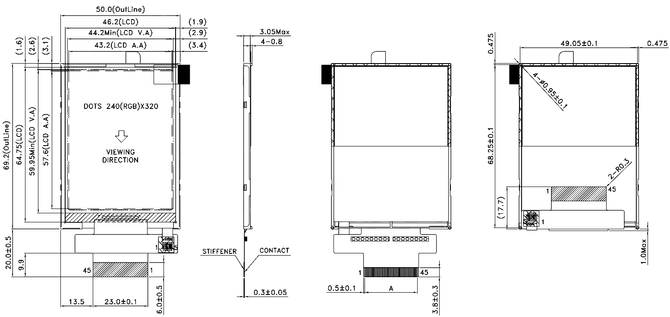

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
