Powertip PH240320T068-LAA06 - TFT display
Details
Parametry
Find similar products
Brand
Symbol
PH240320T068-LAA06
Producer code
5900000823485
Matrix
TFT
Screen diagonal (inch)
2.8
Graphics display resolution standard
QVGA
Resolution (px)
240 x 320
Aspect ratio
4:3
Touch panel type
None
Luminance in cd/m2
350
Controller (IC)
Sitronix ST7789VI
Video interface
80-16 bit
Viewing angles
60/60/60/60
Viewing direction
12H
Temperature range
-20...+70°C
Voltage
2,8V
Powertip PH240320T068-LAA06
A TFT display created by Powertip with 240 x 320 QVGA resolution, 2,8", with 80-16 bit interface. Operating temperature range -20...+70°C.

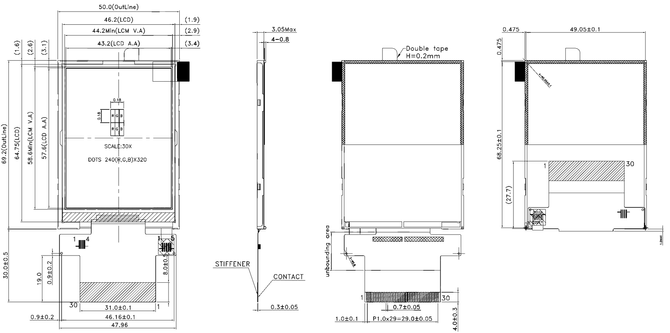

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
