Powertip PH240320T062-LAB06 - TFT display
Powertip PH240320T062-LAB06 - TFT display
Powertip PH240320T062-LAB06 - TFT display
Powertip PH240320T062-LAB06 - TFT display

Powertip PH240320T062-LAB06 - TFT display

MatrixTFT
Screen diagonal (inch)2.4
Graphics display resolution standardQVGA
Resolution (px)240 x 320
Aspect ratio4:3
Touch panel typeRTP
Luminance in cd/m2250
Controller (IC)Sitronix ST7789VI
Video interfaceParallel 8080 8-bit
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - PH240320T062-LAB06
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Powertip
Symbol
PH240320T062-LAB06
Producer code
5900000823478
MatrixMatrix
TFT
Screen diagonal (inch)Screen diagonal (inch)
2.4
Graphics display resolution standardGraphics display resolution standard
QVGA
Resolution (px)Resolution (px)
240 x 320
Aspect ratio
4:3
Touch panel typeTouch panel type
RTP
Luminance in cd/m2Luminance in cd/m2
250
Controller (IC)Controller (IC)
Sitronix ST7789VI
Video interfaceVideo interface
Parallel 8080 8-bit
Viewing angles
45/15/45/45
Viewing direction
12H
Temperature rangeTemperature range
-20...+70°C
VoltageVoltage
3,0V
Search

Powertip PH240320T062-LAB06

A TFT display created by Powertip with 240 x 320 QVGA resolution, 2,4", with 80-16 bit interface and a resistive touch panel. Operating temperature range -20...+70°C.

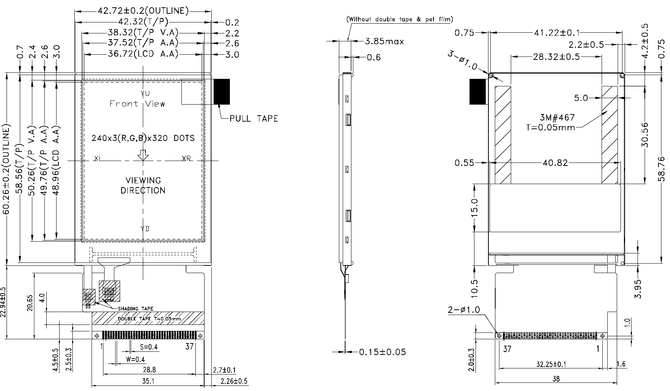

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
