Powertip PH240320T062-LAA07 - TFT display
MatrixTFT
Screen diagonal (inch)2.4
Graphics display resolution standardQVGA
Resolution (px)240 x 320
Touch panel typeNone
Luminance in cd/m2160
Controller (IC)Sitronix ST7789VI
Video interface80-8/16 bitDetails
Parametry
Find similar products
Brand
Symbol
PH240320T062-LAA07
Producer code
5900000823461
Matrix
TFT
Screen diagonal (inch)
2.4
Graphics display resolution standard
QVGA
Resolution (px)
240 x 320
Aspect ratio
4:3
Touch panel type
None
Luminance in cd/m2
160
Controller (IC)
Sitronix ST7789VI
Video interface
80-8/16 bit
Viewing angles
60/60/60/60
Viewing direction
12H
Temperature range
-20...+70°C
Voltage
3.3V
Powertip PH240320T062-LAA07
A TFT display created by Powertip with 240 x 320 QVGA resolution, 2,4", with 80-8/16 bit interface. Operating temperature range -20...+70°C.

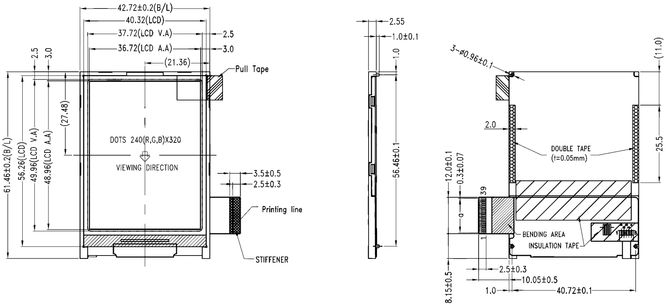

The photograph is for illustrative purposes only. To see the product, check the drawing in the gallery or download the documentation.
