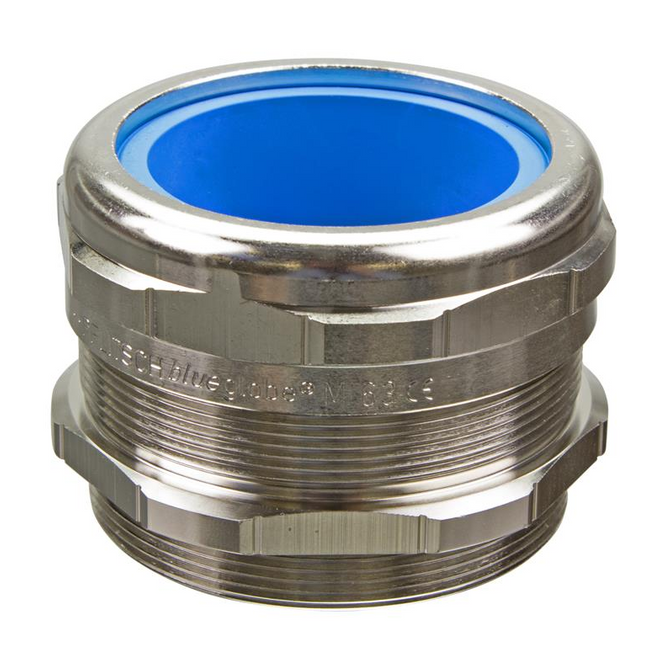

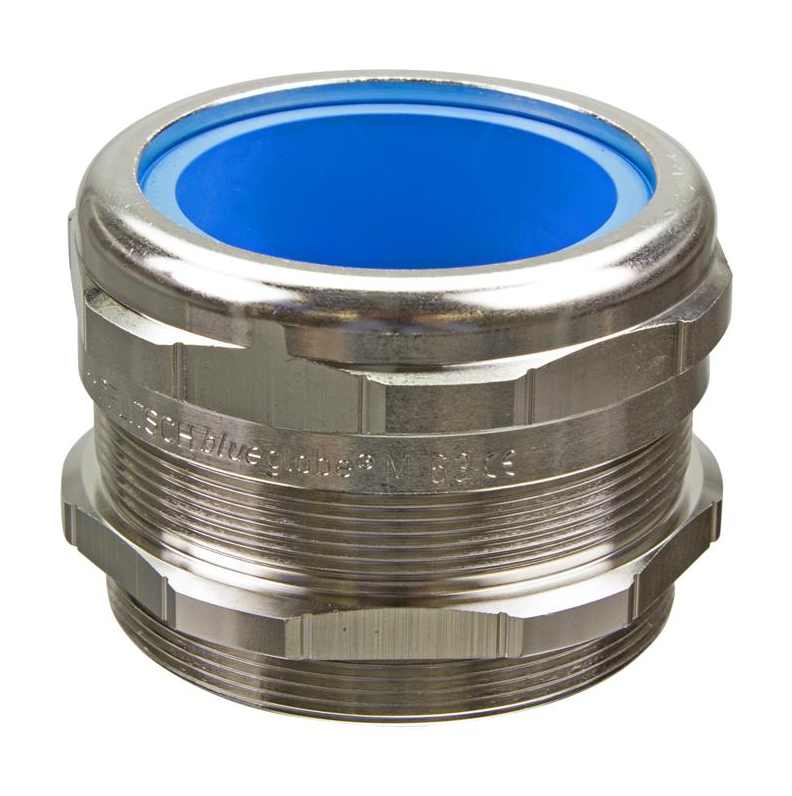

Pflitsch bg 863ms - M63 long thread cable gland
Pflitsch bg 863ms - M63 long thread cable gland
Pflitsch bg 863ms - M63 long thread cable gland
Pflitsch bg 863ms - M63 long thread cable gland

Pflitsch bg 863ms - M63 long thread cable gland

MaterialNickel-plated Brass
ThreadM63
Sealing range in millimeters41-53 mm
Thread length in millimeters15
Ingress ProtectionIP68IP69
Thread
Size
uniwersalny
excl. VAT
35,40 €
gross
Sold by:5pcs.
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Catalogue sheet - bg 863ms
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Pflitsch
Symbol
bg 863ms
Producer code
5900000819280
Series
blueglobe - brass, long thread
MaterialMaterial
Nickel-plated Brass
Insert material
Thermoplastic elastomer - TPE
ThreadThread
M63
Sealing range in millimetersSealing range in millimeters
41-53 mm
Thread length in millimetersThread length in millimeters
15
Product height in millimetresProduct height in millimetres
55
Product width in millimetersProduct width in millimeters
72
Ingress ProtectionIngress Protection
IP68
IP69
ColourColour
Unpainted
Temperature rangeTemperature range
-40...+130°C
Application features
Standard
Search

Pflitsch bg 863ms

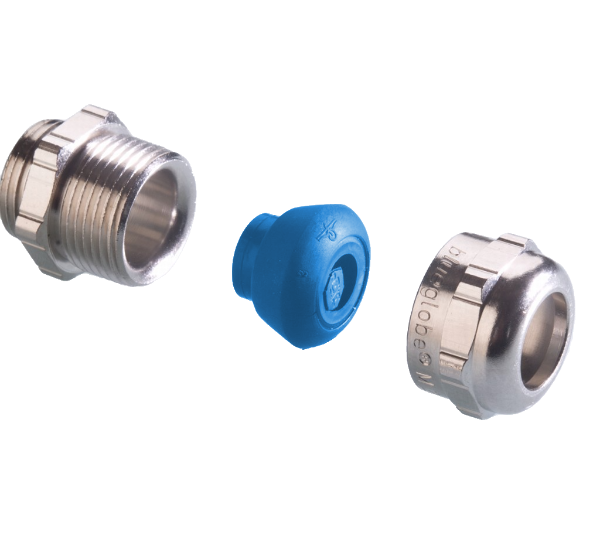

Bg 863ms is a brass cable gland from the Pflitsch blueglobe series. The gland provides gentle relief over a large area, good resistance to vibrations and a wide range of seals. The component is easy to identify. It has an M63 thread, a sealing range of 41-54 mm, a sealing insert made of TPE material and a ingress protection rating of IP68 (up to 15 bar), IP69. Operaring temperature range of the cable gland reaches -40 ... +130 degrees Celsius.
