Details
Parametry
Find similar products
Brand
Symbol
bg 825ms
Producer code
5900000632964
Material

Nickel-plated brass
Insert material
Thermoplastic elastomer - TPE
Thread

M25
Sealing range in millimeters

11-20 mm
Thread length in millimeters

15
Product height in millimetres

45
Product width in millimeters

33
Ingress Protection

IP68
IP69
Colour

Unpainted
Temperature range

-40...+130°C
Straight / Angular
Straight
Pflitsch bg 825ms

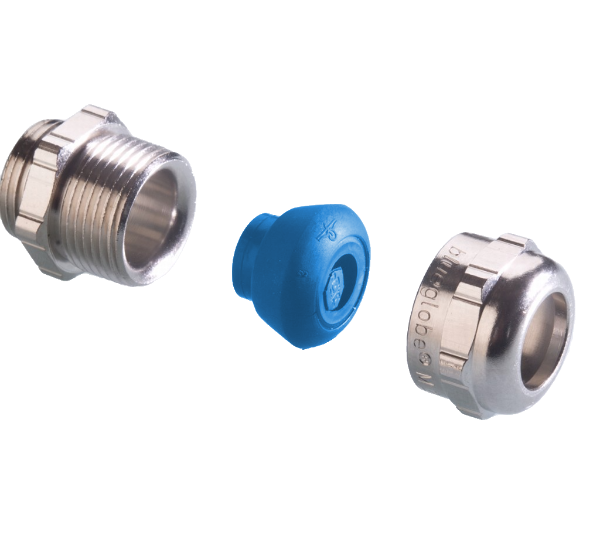

Bg 825ms is a brass cable gland from the Pflitsch blueglobe series. The gland provides gentle relief over a large area, good resistance to vibrations and a wide range of seals. The component is easy to identify. It has an M25 thread, a sealing range of 11-20 mm, a sealing insert made of TPE material and a ingress protection rating of IP68 (up to 15 bar), IP69. Operaring temperature range of the cable gland reaches -40 ... +130 degrees Celsius.
