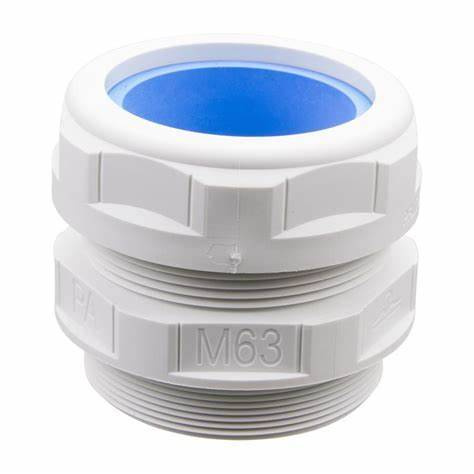

Pflitsch bg 263PA - cable gland
Pflitsch bg 263PA - cable gland
Pflitsch bg 263PA - cable gland
Pflitsch bg 263PA - cable gland

Pflitsch bg 263PA - cable gland

MaterialPolyamide
ThreadM63
Sealing range in millimeters41-53 mm
Ingress ProtectionIP66IP69
Thread
Sealing range in millimeters
Size
uniwersalny
excl. VAT
31,04 zł
gross
Sold by:5pcs.
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - bg 263PA
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Pflitsch
Symbol
bg 263PA
Producer code
5900000719078
MaterialMaterial
Polyamide
Insert material
Thermoplastic elastomer - TPE
ThreadThread
M63
Sealing range in millimeters
41-53 mm
Thread length in millimeters
15
Product height in millimetresProduct height in millimetres
64
Product width in millimetersProduct width in millimeters
75
Ingress ProtectionIngress Protection
IP66
IP69
ColourColour
Grey
Temperature rangeTemperature range
-20...+120°C
Straight / Angular
Straight
Search

Pflitsch bg 263PA

Bg 263PA is a polyamide cable gland from blueglobe series by Pflitsch. Blueglobe cable glands offer balanced strain relief distribution on large surface (Soft Squeeze) and high resistance to vibrations. The component is easy to identify. Thread: M63, clamping range outer sheath: 41-53 mm, protection degree: IP68 (up to 15 bar), IP69. Operating temperatures from -20 to +120 degrees Celsius.

Also available in black.
