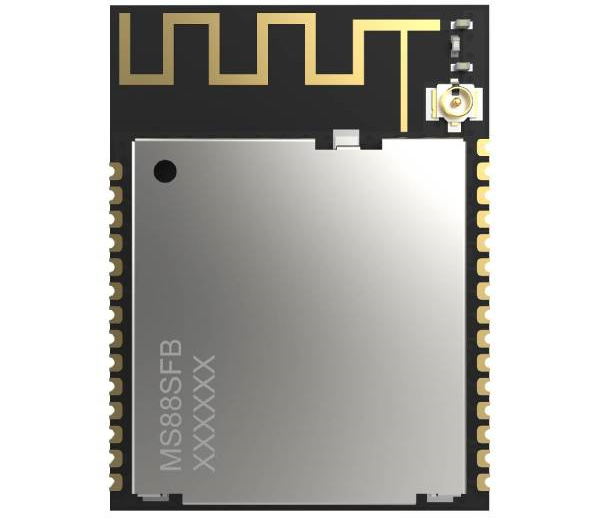

Minew MS88SFB - BLE + IEEE 802.15.4 module

Minew MS88SFB - BLE + IEEE 802.15.4 module

Antenna typePCBIPEX
FLASH memory512 KB
Product width in millimeters17.4
Product length in millimeters23.2
ChipNordic nRF52833
TechnologyBLE 5.2IEEE 802.15.4
Size
uniwersalny
excl. VAT
6,52 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - MS88SFB
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Minew
Symbol
MS88SFB8
Producer code
5900000837024
Series
nRF52833
Antenna typeAntenna type
PCB
IPEX
FLASH memoryFLASH memory
512 KB
Product height in millimetresProduct height in millimetres
2
Product width in millimetersProduct width in millimeters
17.4
Product length in millimetersProduct length in millimeters
23.2
GPIOGPIO
29
VoltageVoltage
1,7 - 5,5V
Temperature rangeTemperature range
-40...+85°C
ChipChip
Nordic nRF52833
RAM memoryRAM memory
128 KB
TechnologyTechnology
BLE 5.2
IEEE 802.15.4
Search

Minew MS88SFB

The MS88SFB is a compact module designed by Minew, running on a powerful Nordic nRF52833 chip with a 32-bit ARM Cortex M4F processor and 512 KB FLASH + 128 KB RAM memory. The module supports Bluetooth 5.2 Low Energy and IEEE 802.15.4, it has 29 configurable pins, PCB antenna with additional IPEX connector, and can operate in a temperature range of -40...+85℃. Power supply 1.7 - 5.5V. Dimensions: 23.2 x 17.4 x 2 mm.
