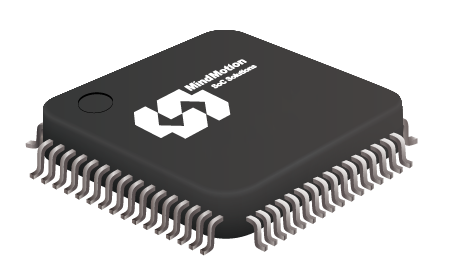

MindMotion MM32F103RBT6

MM32F103RBT6 is a 32-bit microcontroller based on the high-performance Arm® Cortex-M3 core, operating at a frequency of up to 96MHz, with built-in high-speed memory, an extensive range of enhanced I/O ports and peripherals.

• 128KB Flash, 20KB SRAM
• Two 12-bit ADCs
• Three 16-bit general-purpose timers and one 16-bit advanced timer
• Interfaces: 2x I2C, 2x SPI, 3x UART, 1x USB, 1x CAN
• Working voltage: 2.0V~5.5V
• Multiple sets of power-saving modes make possible the design of low-power applications
• Working temperature range (ambient temperature): -40℃ to +85℃ industrial level
