Espressif Systems ESP32-C3-LCD-EV-BOARD - evaluation board
Espressif Systems ESP32-C3-LCD-EV-BOARD - evaluation board
Espressif Systems ESP32-C3-LCD-EV-BOARD - evaluation board
Espressif Systems ESP32-C3-LCD-EV-BOARD - evaluation board

Espressif Systems ESP32-C3-LCD-EV-BOARD - evaluation board

ChipESP32-C3
ModuleESP32-C3-MINI-1
FLASH memory4 MB
Longevityuntil 2033
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Espressif Systems
Symbol
ESP32-C3-LCD-EV-BOARD
Producer code
5900000820583
ChipChip
ESP32-C3
ModuleModule
ESP32-C3-MINI-1
CPU clocking (max)CPU clocking (max)
160 MHz
Number of cores
1
Antenna typeAntenna type
PCB
FLASH memoryFLASH memory
4 MB
SRAM in RTC memory
8 KB
SRAM memorySRAM memory
400 KB
ROM memory
384 KB
LongevityLongevity
until 2033
Search

Espressif Systems ESP32-C3-LCD-EV-BOARD

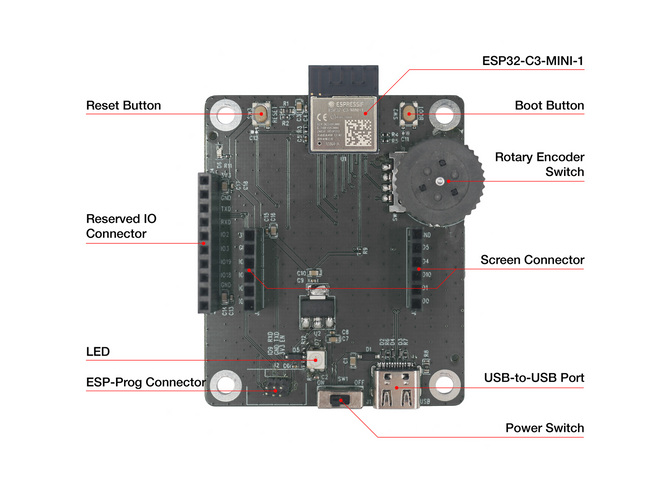

ESP32-C3-LCD-EV-BOARD is an evaluation kit from Espressif Systems, based on the ESP32-C3 chip, designed to support SPI, I2C interfaces. These solutions have an innovative user-interface which enables data visualization, touch or knob control, voice wake-up and recognition, and multi-mode gateway among other features.

The device features a single core, 32-bit RISC-V processor, clocked up to 160MHz, 384 KB ROM, 400 KB SRAM, 8 KB SRAM in RTC, 22 programmable GPIO pins. Typical resolutions 240x240 (SPI), 240x320 (QSPI).

    Key features:

  • Module Embedded: ESP32-C3-MINI-1 module with 4 MB flash and 400 KB SRAM
  • Display: Compatibility with various subboards and support for displays with SPI, and I2C interfaces
  • Rotary encoder switch: Supports key switches and 360° rotation for control of the screen GUI
  • USB: Support USB Type-C interface download and debugging
