Brand
Symbol
ESP8684-DevKitC-02UC-N4
Producer code
5900000857695
Chip
ESP8684H4
Module
ESP8684-WROOM-02UC
Technology
BT 5.0
WiFi 4
Temperature range
-40...+85°C
Product width in millimeters
25.4
Product height in millimetres
18
Product length in millimeters
38.91
FLASH memory
4 MB
SRAM in RTC memory
16 KB
ROM memory
576 KB
SRAM memory
272 KB
GPIO
14
Antenna type
IPEX
Voltage
5V
Longevity
until 2034

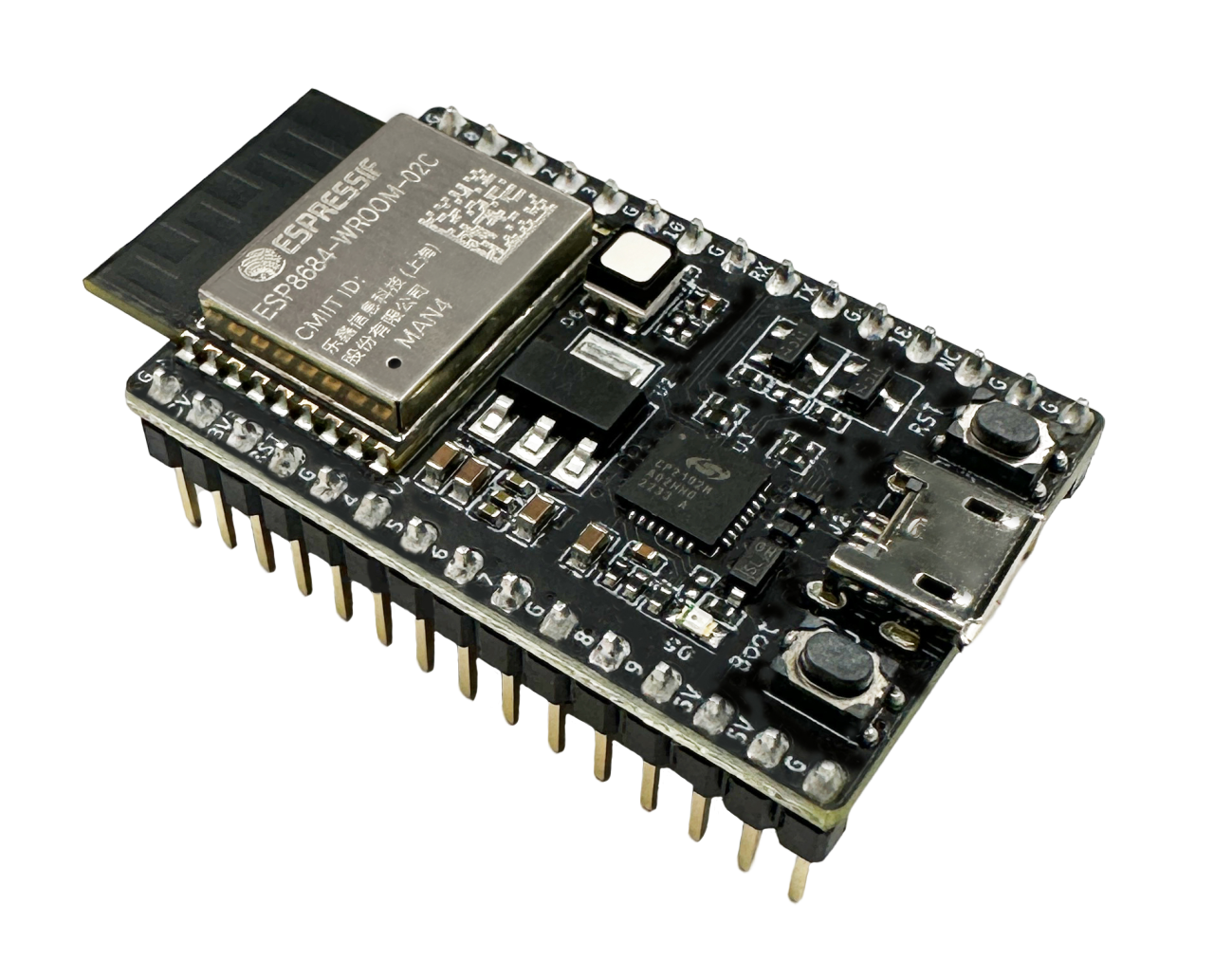

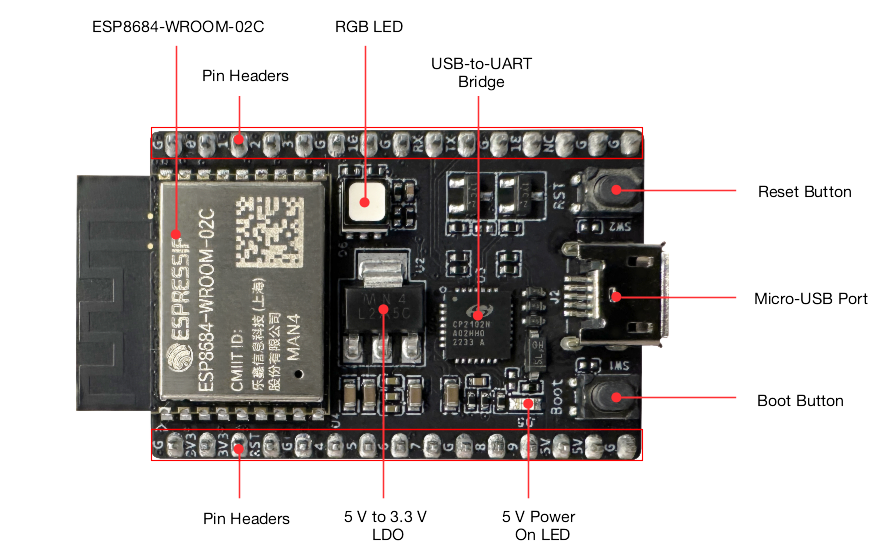

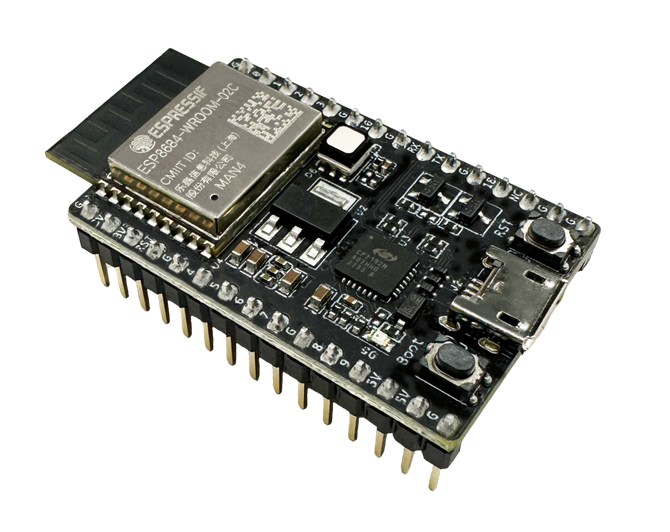

Espressif ESP8684-DevKitC-02UC-N4
A developement board by Espressif Systems, with an ESP8684-WROOM-02UC module embedded, supporting WiFi 4, 2.4 GHz standards as well as Bluetooth 5, equipped with 14 configurable pins (GPIO) and a IPEX antenna connector. Voltage is 5V.
