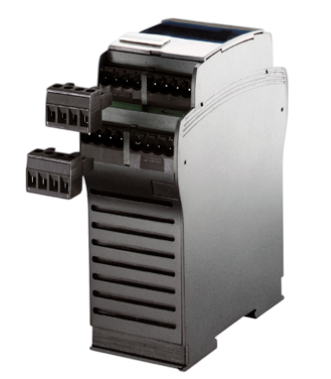

Key features of the LDG-S4:

• Designed for 32 terminals: Supports up to 32 terminals (8 screw terminal blocks with 4 terminals each) or up to 32 pin contacts (8 PCB headers with 4 pin contacts each), ensuring high flexibility in connection configuration for extensive systems. Versions with plug-in or screw terminals are available.
• Increased width: With an installation width of 45 mm, the LDG-S4 provides significantly more space for PCB components compared to the LDG-S2, while maintaining a compact profile.
• Easy installation: Similar to the LDG-S2, the snap-in design of the two-piece base and top section and the integrated snap-in clip facilitate quick and easy installation on a DIN rail (in accordance with DIN EN 50 022). The LDG-S4 also features spacer blocks to facilitate assembly.
• Effective cooling: The base part with integrated ventilation slots supports optimal heat dissipation for electronic components. Versions without ventilation are available on request.
• High safety standards and materials: The fully insulated enclosure, made of thermoplastic (UL 94 V-0 for the base and top, UL 94 V-1/V-2 for the cover), ensures safe operation in temperatures ranging from -40°C to +85°C. It has an IP40 protection rating and complies with IEC 60 664 and IEC 112 standards.
• Additional options: Transparent enclosure cover with label option and customizable colors and versions.
