Bopla P 316 (04316000) - polyester enclosure with neoprene gasket (160 x 75 x 56.5 mm)
Bopla P 316 (04316000) - polyester enclosure with neoprene gasket (160 x 75 x 56.5 mm)
Bopla P 316 (04316000) - polyester enclosure with neoprene gasket (160 x 75 x 56.5 mm)
Bopla P 316 (04316000) - polyester enclosure with neoprene gasket (160 x 75 x 56.5 mm)
Bopla P 316 (04316000) - polyester enclosure with neoprene gasket (160 x 75 x 56.5 mm)
Bopla P 316 (04316000) - polyester enclosure with neoprene gasket (160 x 75 x 56.5 mm)

Bopla P 316 (04316000) - polyester enclosure with neoprene gasket (160 x 75 x 56.5 mm)

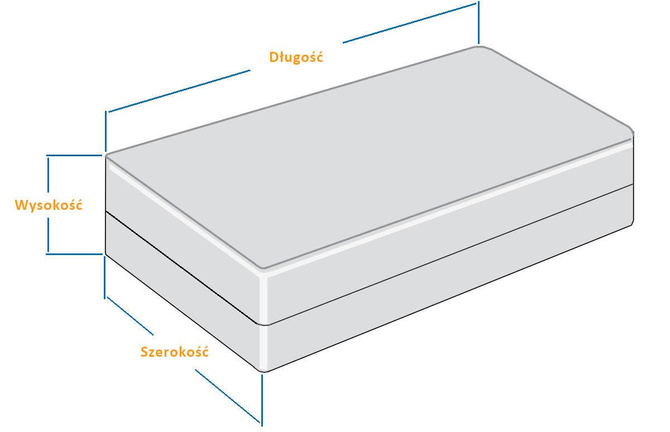

Product length in millimeters160
Product height in millimetres56.5
Product width in millimeters75
MaterialPolyester
Ingress ProtectionIP66
excl. VAT
143,47 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Brand
Symbol
04316000
Producer code
5900000740713
Product length in millimetersProduct length in millimeters
160
Product height in millimetresProduct height in millimetres
56.5
Product width in millimetersProduct width in millimeters
75
MaterialMaterial
Polyester
Ingress ProtectionIngress Protection
IP66
ColourColour
RAL 7000 - Squirrel grey
Type of cover
Nontransparent lid
Gasket materialGasket material
Neoprene
Search

Bopla P 316 (04316000)

A classic enclosure manufactured from high-quality fiberglass-reinforced polyester (UP-GF 25-30%) with a focus on the quality of gasket assembly, translating into compliance with rigorous standards for the protection of customers' end devices. The molded neoprene gasket ensures a high degree of protection, at least IP66 according to the DIN EN 60529 standard. Alternatively, higher temperature resistance can be achieved using a silicone gasket. Achieved an impact protection rating of IK07 according to the IEC 62262 standard. Certification is possible according to UL requirements. Matching mounting accessories such as hinges, mounting plates, and wall brackets, including those for masts.

The package includes a base and a cover with mounting screws.
