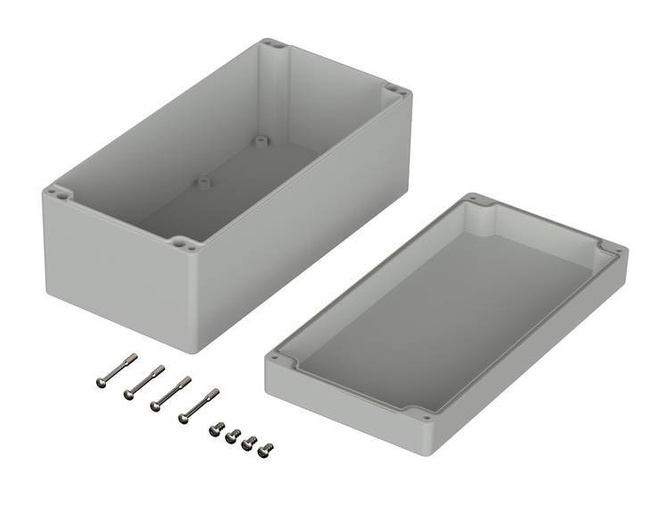

Bopla M 242-V0 (02242094) - PC enclosure without recess in the cover (240,5 x 120 x 100,5 mm)
Bopla M 242-V0 (02242094) - PC enclosure without recess in the cover (240,5 x 120 x 100,5 mm)
Bopla M 242-V0 (02242094) - PC enclosure without recess in the cover (240,5 x 120 x 100,5 mm)
Bopla M 242-V0 (02242094) - PC enclosure without recess in the cover (240,5 x 120 x 100,5 mm)

Bopla M 242-V0 (02242094) - PC enclosure without recess in the cover (240,5 x 120 x 100,5 mm)

Product length in millimeters240.5
Product height in millimetres100.5
Product width in millimeters120
MaterialPolycarbonate - PC UL 94 V-0
Gasket materialNeoprene
Ingress ProtectionIP66
Size
uniwersalny
excl. VAT
123,17 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Drawing - 02242094
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bopla
Symbol
02242094
Series
Euromas ABS / PC
Product length in millimetersProduct length in millimeters
240.5
Product height in millimetresProduct height in millimetres
100.5
Product width in millimetersProduct width in millimeters
120
MaterialMaterial
Polycarbonate - PC UL 94 V-0
Flammability - UL Standard
UL 94 V-0
Gasket materialGasket material
Neoprene
Ingress ProtectionIngress Protection
IP66
ColourColour
RAL 7035 - Light grey
CertificateCertificate
EN 45545-2 [HL 3]
Search

Bopla M 242-V0 (02242094)

Classic industrial enclosure.The material PC UL 94 V0 complies with the requirements of R22 according to DIN EN 45545-2 at the HL3 hazard level (railway standard). Precisely mounted neoprene seal in the enclosure lid. Mounting pins for electronics in the base. Non-detachable screws from the lid mounted to high-quality sleeves in the enclosure base. Size-matched mounting plates, TS rails, hinges, brackets for mounting casings on masts. The high quality of the material used is greatly appreciated during casing milling.

In the set, we provide a base and lid with mounting screws.
