Bopla M 231-V0 (02231094) - PC enclosure without recess in the cover (160 x 80 x 85 mm)
Bopla M 231-V0 (02231094) - PC enclosure without recess in the cover (160 x 80 x 85 mm)
Bopla M 231-V0 (02231094) - PC enclosure without recess in the cover (160 x 80 x 85 mm)
Bopla M 231-V0 (02231094) - PC enclosure without recess in the cover (160 x 80 x 85 mm)

Bopla M 231-V0 (02231094) - PC enclosure without recess in the cover (160 x 80 x 85 mm)

Product length in millimeters160
Product height in millimetres85
Product width in millimeters80
MaterialPolycarbonate - PC UL 94 V-0
Flammability - UL StandardUL 94 V-0
Gasket materialNeoprene
Ingress ProtectionIP66
Size
uniwersalny
net
78,98 zł
incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Drawing - 02231094
Ask us about the product
Ask a question
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bopla
Symbol
02231094
Producer code
5900000701561
Series
Euromas ABS / PC
Product length in millimetersProduct length in millimeters
160
Product height in millimetresProduct height in millimetres
85
Product width in millimetersProduct width in millimeters
80
MaterialMaterial
Polycarbonate - PC UL 94 V-0
Flammability - UL Standard
UL 94 V-0
Gasket materialGasket material
Neoprene
Ingress ProtectionIngress Protection
IP66
ColourColour
Light grey - RAL 7035
CertificateCertificate
EN 45545-2 [HL 3]
Search

Bopla M 231-V0 (02231094)

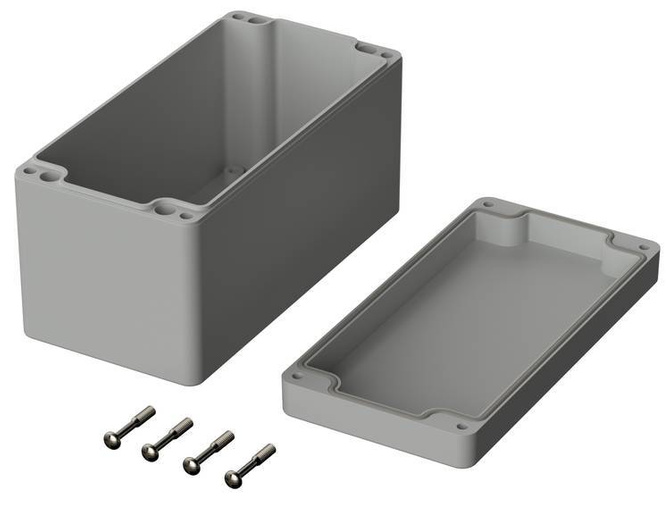

Classic industrial enclosure.The material PC UL 94 V0 complies with the requirements of R22 according to DIN EN 45545-2 at the HL3 hazard level (railway standard). Precisely mounted neoprene seal in the enclosure lid. Mounting pins for electronics in the base. Non-detachable screws from the lid mounted to high-quality sleeves in the enclosure base. Size-matched mounting plates, TS rails, hinges, brackets for mounting casings on masts. The high quality of the material used is greatly appreciated during casing milling.

In the set, we provide a base and lid with mounting screws.
