Bopla EM 223 (62223000) - PC enclosure without recess in the cover (200 x 150 x 77 mm)
Bopla EM 223 (62223000) - PC enclosure without recess in the cover (200 x 150 x 77 mm)
Bopla EM 223 (62223000) - PC enclosure without recess in the cover (200 x 150 x 77 mm)
Bopla EM 223 (62223000) - PC enclosure without recess in the cover (200 x 150 x 77 mm)

Bopla EM 223 (62223000) - PC enclosure without recess in the cover (200 x 150 x 77 mm)

Ingress ProtectionIP65
Type of coverSmooth lid
Product length in millimeters200
Product width in millimeters150
Product height in millimetres77
ColourLight grey - RAL 7035
Gasket materialNeoprene
MountingScrew-on
MaterialPolycarbonate - PC (UV stabilised)
Size
uniwersalny
excl. VAT
104,62 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Drawing - 62223000
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bopla
Symbol
62223000
Series
Euromas II
Ingress ProtectionIngress Protection
IP65
Type of cover
Smooth lid
Product length in millimetersProduct length in millimeters
200
Product width in millimetersProduct width in millimeters
150
Product height in millimetresProduct height in millimetres
77
ColourColour
Light grey - RAL 7035
Gasket materialGasket material
Neoprene
MountingMounting
Screw-on
MaterialMaterial
Polycarbonate - PC (UV stabilised)
Search

Bopla EM 223 (62223000)

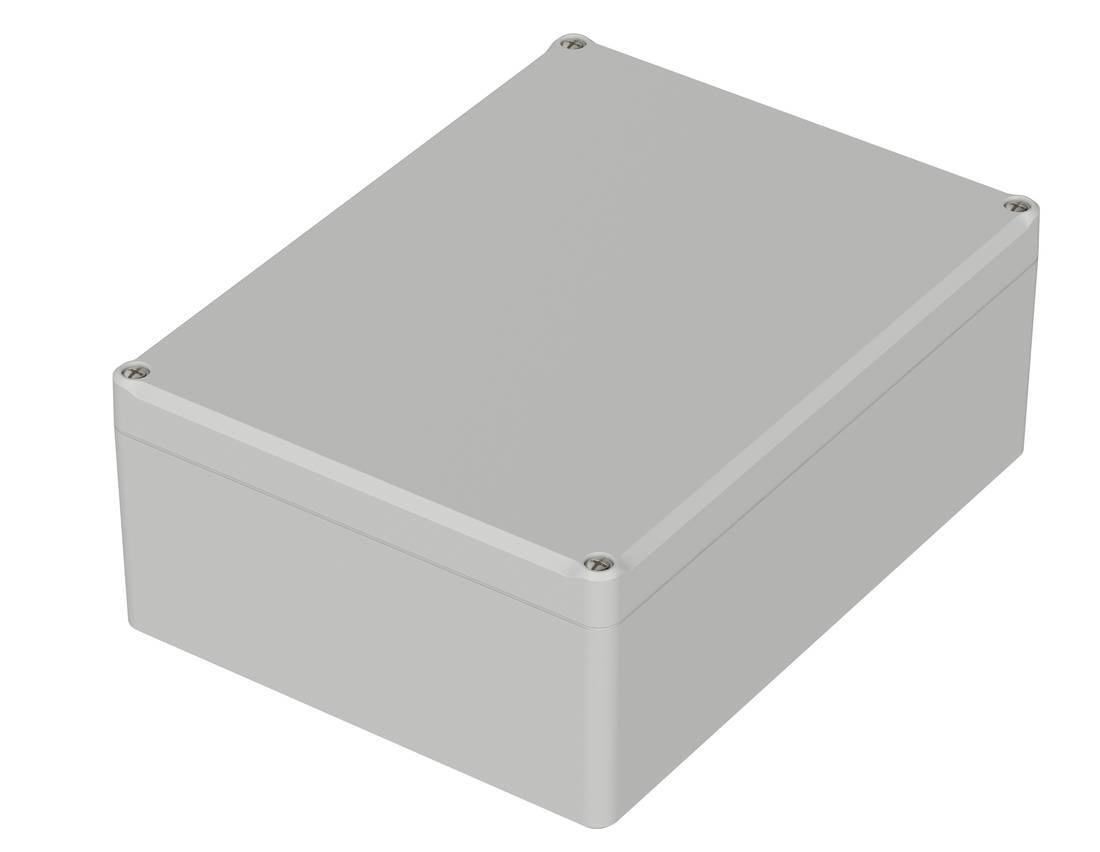

A classic industrial enclosure. The possibility of mounting PCBs in the base or the cover of the enclosure. Plastic screw covers EM-SA, numerous mounting accessories available separately. The high quality of the material used is greatly appreciated during the enclosure milling process.

A precisely installed neoprene gasket in the enclosure cover. The non-falling screws from the enclosure cover are mounted to high-quality bushings in the enclosure base. Additionally, the mounting screws are concealed by a special EM-SA cover ordered separately, giving an elegant shape to the enclosure. Custom-sized mounting plates, TS rails, and mast mounting brackets are available.

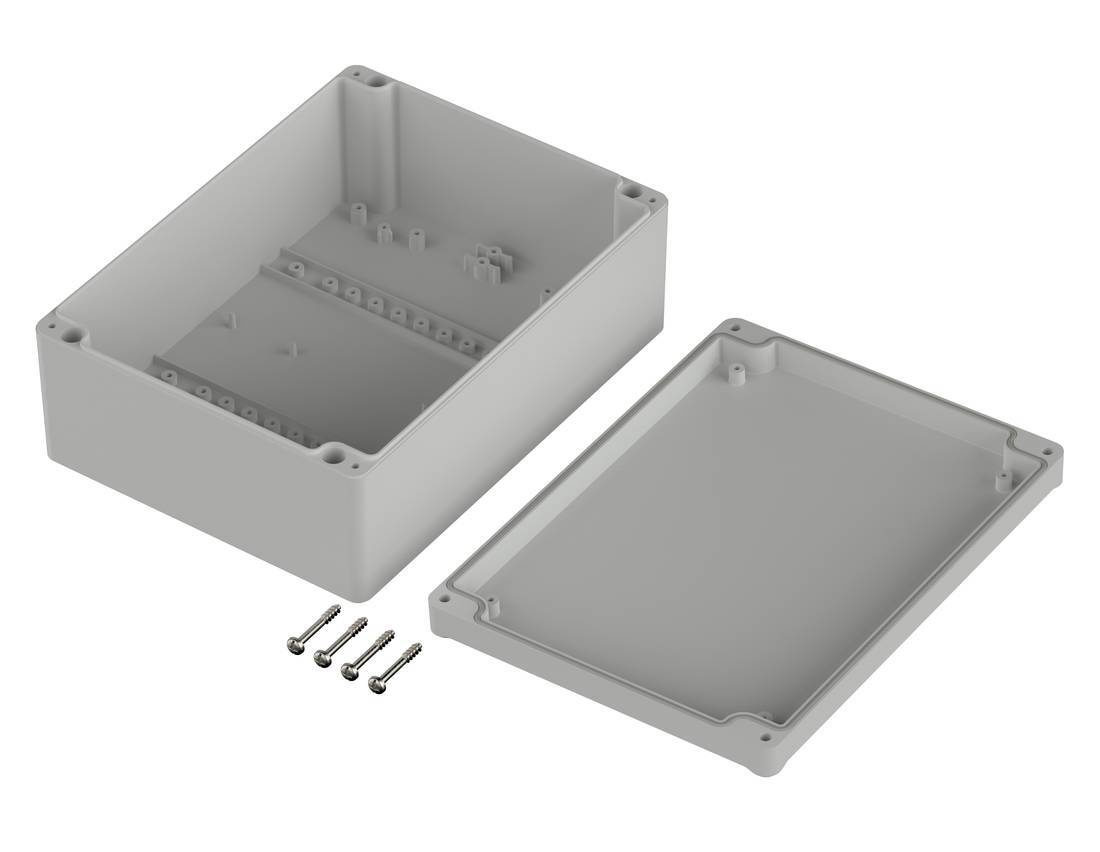

The package includes the base and cover with mounting screws.
