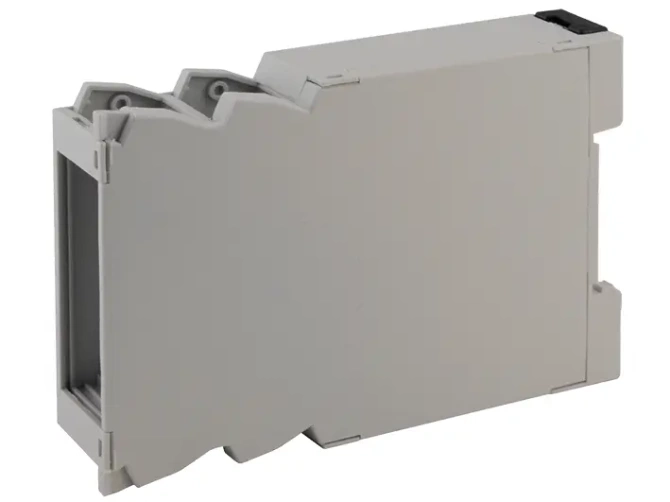

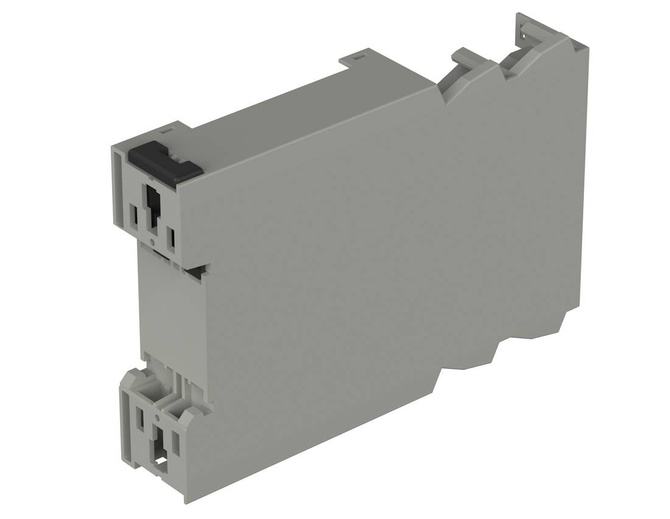

Bopla CN 22 GK (65022100) - part of the CombiNorm-Compact enclosure (22.5 x 75 x 110.8 mm)
Bopla CN 22 GK (65022100) - part of the CombiNorm-Compact enclosure (22.5 x 75 x 110.8 mm)
Bopla CN 22 GK (65022100) - part of the CombiNorm-Compact enclosure (22.5 x 75 x 110.8 mm)
Bopla CN 22 GK (65022100) - part of the CombiNorm-Compact enclosure (22.5 x 75 x 110.8 mm)
Bopla CN 22 GK (65022100) - part of the CombiNorm-Compact enclosure (22.5 x 75 x 110.8 mm)
Bopla CN 22 GK (65022100) - part of the CombiNorm-Compact enclosure (22.5 x 75 x 110.8 mm)

Bopla CN 22 GK (65022100) - part of the CombiNorm-Compact enclosure (22.5 x 75 x 110.8 mm)

Product length in millimeters110.8
Product height in millimetres22.5
Product width in millimeters75
MaterialPolyamide
Size
uniwersalny
excl. VAT
14,31 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
PDF drawing - 65022100
STEP 3D model - 65026100
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Save by buying more

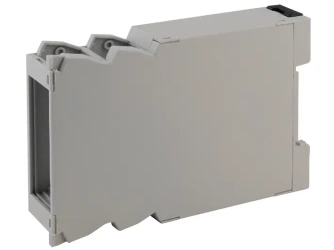

Bopla CN 22 GK (65022100) Base + Bopla CN-DK (65000200) Lid - CombiNorm-Compact enclosure (22,5 x 75 x 110.8 mm)

Bopla CN 22 GK (65022100) Base + Bopla CN-DK (65000200) Lid - CombiNorm-Compact enclosure (22,5 x 75 x 110.8 mm)

25,66 zł gross
See the set

Details

Parametry
Find similar products
Brand
Bopla
Symbol
65022100
Series
CombiNorm-Compact
Product length in millimetersProduct length in millimeters
110.8
Product height in millimetresProduct height in millimetres
22.5
Product width in millimetersProduct width in millimeters
75
MaterialMaterial
Polyamide
Ingress ProtectionIngress Protection
IP20
ColourColour
Light grey
Search

Bopla CN 22 GK (65022100)

The part of the enclosure for printed circuit boards has a stepped shape with locations for terminal connectors from the top or front. It forms a set with the CN-DK cover. Made of PA 6.6-FR material (UL 94 V0). Adapted for mounting on a DIN rail according to DIN EN 60715 TH 35.
