Details
Parametry
Find similar products
Brand
Symbol
93173525
Series
Colour

RAL 7024 - Graphite grey
Ingress Protection

IP40
Material

ABS
Product width in millimeters

95,7
Product height in millimetres

15
Product length in millimeters

166,4

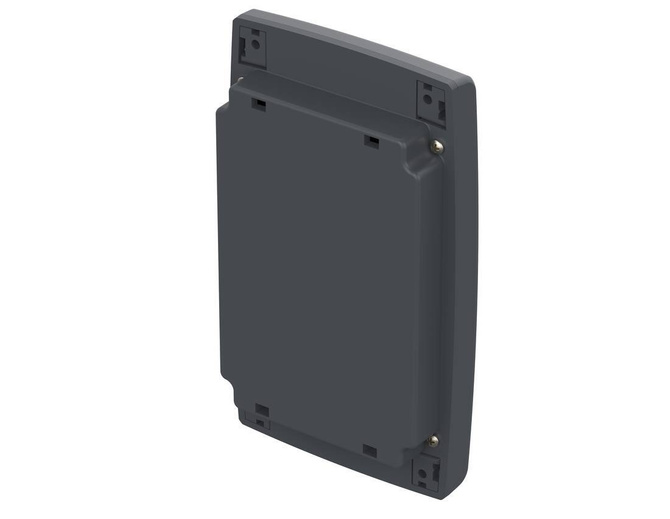

Bopla C 1735 F-NG-7024 (93173525)
Wall-mounted panel enclosure Circum with the option of flush mounting displays and/or keyboards. The maximum display size that can be integrated into this enclosure is 4.3 inches. A coherent design and an innovative concept of concealing the screw system by using protective panels, including separately ordered panels in various colors. Mounting the enclosure on the wall/in a flush-mounted socket is done using a snap-on mounting frame system - click on. The mounting frame C-WL is ordered separately.

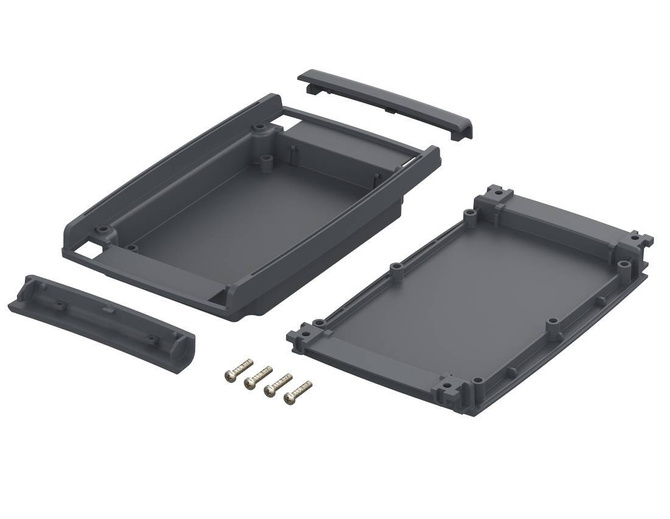

The package includes the top and bottom of the enclosure along with two protective panels matching the enclosure color and four mounting screws.
