BOPLA BS 503 DIS-7035 (82503235) - ABS enclosure with display screen and battery compartment (140.3 x 72.9 x 31.3 mm)
BOPLA BS 503 DIS-7035 (82503235) - ABS enclosure with display screen and battery compartment (140.3 x 72.9 x 31.3 mm)
BOPLA BS 503 DIS-7035 (82503235) - ABS enclosure with display screen and battery compartment (140.3 x 72.9 x 31.3 mm)
BOPLA BS 503 DIS-7035 (82503235) - ABS enclosure with display screen and battery compartment (140.3 x 72.9 x 31.3 mm)
BOPLA BS 503 DIS-7035 (82503235) - ABS enclosure with display screen and battery compartment (140.3 x 72.9 x 31.3 mm)
BOPLA BS 503 DIS-7035 (82503235) - ABS enclosure with display screen and battery compartment (140.3 x 72.9 x 31.3 mm)
BOPLA BS 503 DIS-7035 (82503235) - ABS enclosure with display screen and battery compartment (140.3 x 72.9 x 31.3 mm)
BOPLA BS 503 DIS-7035 (82503235) - ABS enclosure with display screen and battery compartment (140.3 x 72.9 x 31.3 mm)

BOPLA BS 503 DIS-7035 (82503235) - ABS enclosure with display screen and battery compartment (140.3 x 72.9 x 31.3 mm)

Product length in millimeters140.3
MaterialABS
Display screenYes
Battery compartmentYes, with seal
Ingress ProtectionIP65IP40
Product width in millimeters72.9
Próbkitak
Product height in millimetres31,3
Colour
Display screen
Battery compartment
Type of seal
excl. VAT
88,76 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Brand
Symbol
82503235
Product length in millimetersProduct length in millimeters
140.3
ColourColour
RAL 7035 - Light grey
MaterialMaterial
ABS
Display screenDisplay screen
Yes
Battery compartmentBattery compartment
Yes, with seal
Type of sealType of seal
Inserted (DI-D purchased separately)
Ingress ProtectionIngress Protection
IP65
IP40
Product width in millimetersProduct width in millimeters
72.9
Product height in millimetresProduct height in millimetres
31,3
Search

BOPLA BS 503 DIS-7035 (82503235)

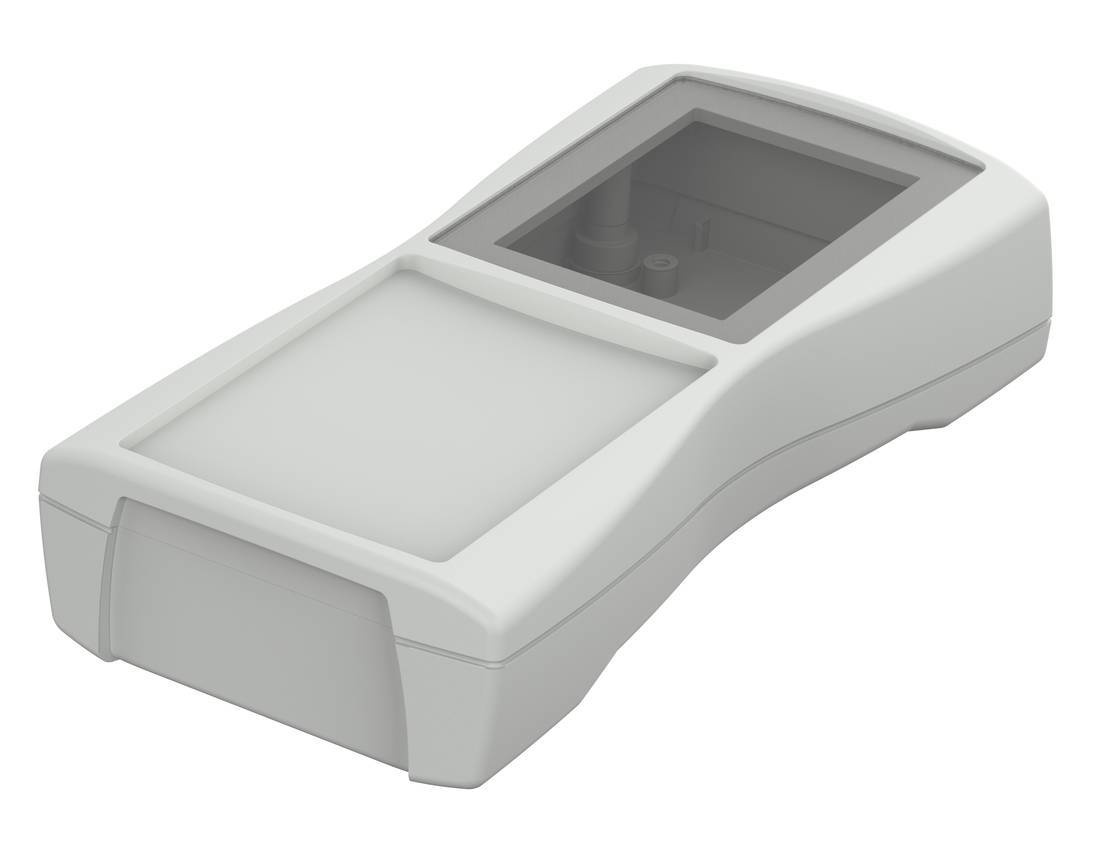

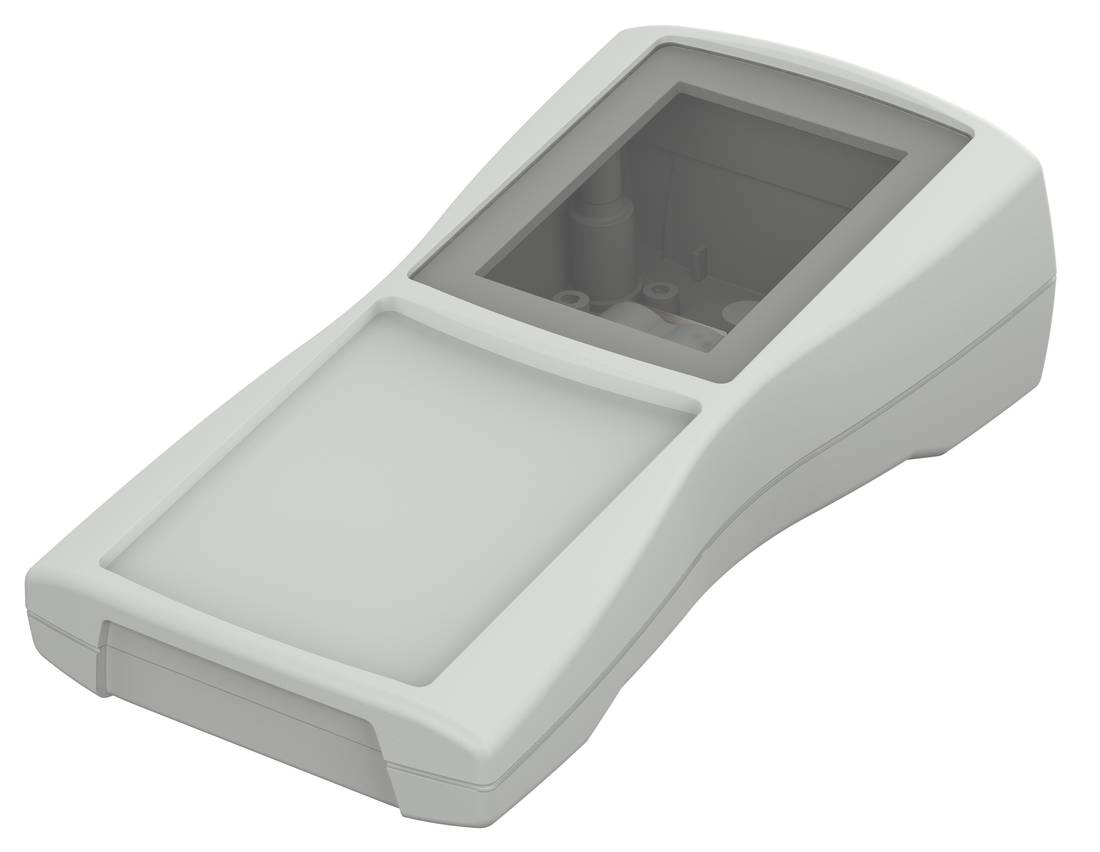

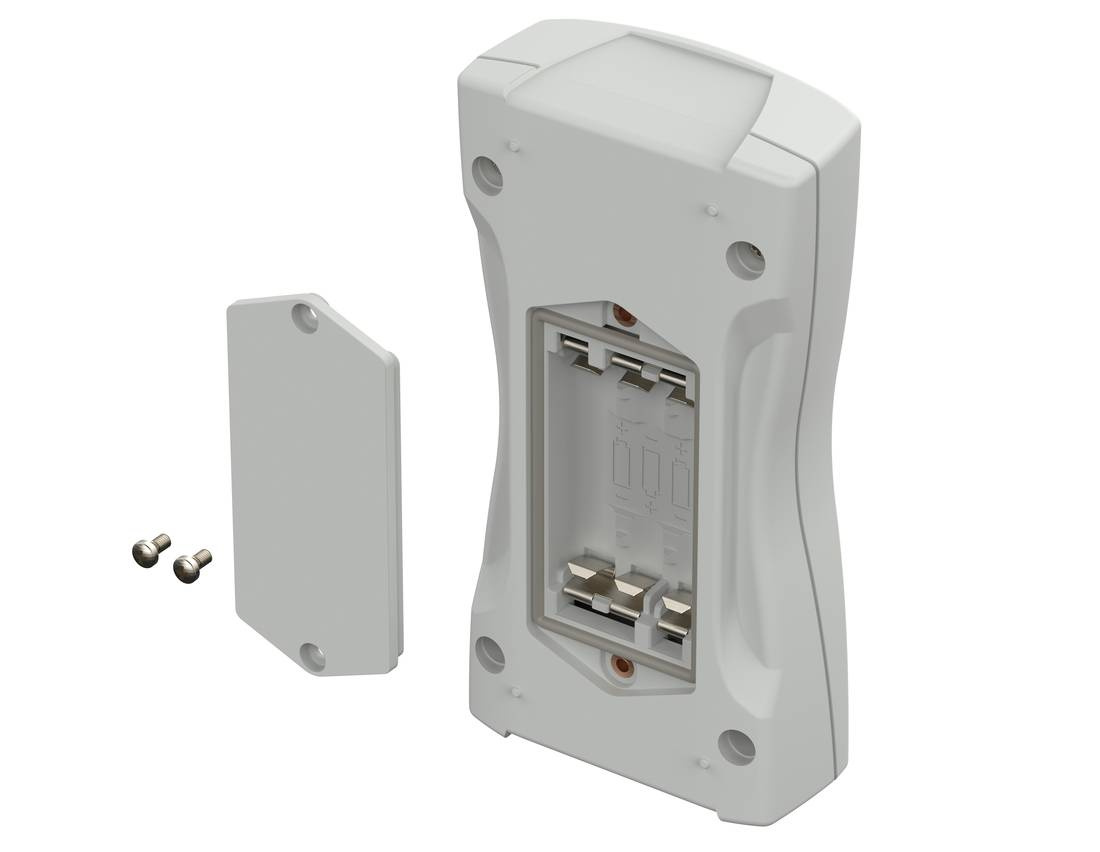

ABS enclosure in dimension 140.3 x 72.9 x 31.3 mm in colour similar to RAL 7035 with compartment for 3x AAA batteries and membrane keypad area, which can be use to mount display and membrane keypad .

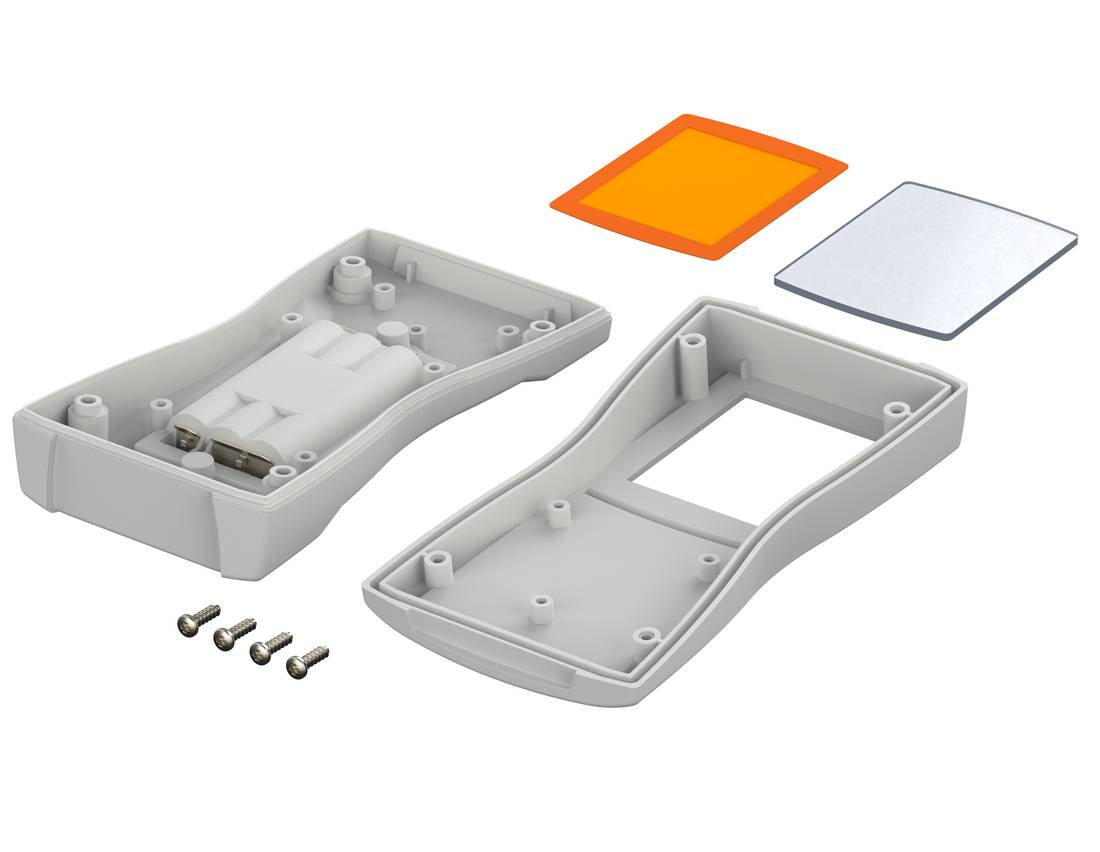

Flat or inclined design by turning the enclosure half-shells. It can be combined with decour seals. Other materials and colours on special order.

Ingress protection can be increased to IP65 after applying DI-D decor seal.

Additional services

We can offer you a number of additional services covering each of the enclosures purchased in our store:

  • mechanical processing:
    • milling,
    • drilling,
    • threading;


  • prints making:
    • digital printing,
    • laser marking,
    • screen printing,
    • pad printing,
    • EMC coating;


  • selection and integration of components:
    • displays,
    • membrane keyboards,
    • electronic modules,
    • electromechanical elements (e.g. cable glands and pressure compensation elements),
    • touch screens,
    • cables,
    • EMC shielding.


For more details, please contact us directly.
