BOPLA BCD 160 CF-7035 (20161435) - installation area with membrane keypad area (199 x 177.85 x 19 mm)
BOPLA BCD 160 CF-7035 (20161435) - installation area with membrane keypad area (199 x 177.85 x 19 mm)
BOPLA BCD 160 CF-7035 (20161435) - installation area with membrane keypad area (199 x 177.85 x 19 mm)
BOPLA BCD 160 CF-7035 (20161435) - installation area with membrane keypad area (199 x 177.85 x 19 mm)

BOPLA BCD 160 CF-7035 (20161435) - installation area with membrane keypad area (199 x 177.85 x 19 mm)

Product length in millimeters199
Product width in millimeters177,85
Product height in millimetres19
ColourRAL 7035 - Light grey
MaterialABS
Ingress ProtectionIP65
MountingScrew-on
Colour
Size
uniwersalny
excl. VAT
86,03 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
PDF drawing - 20161435
STEP 3D model - 20161435
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bopla
Symbol
20161435
Series
Bocard
Product length in millimetersProduct length in millimeters
199
Product width in millimetersProduct width in millimeters
177,85
Product height in millimetresProduct height in millimetres
19
ColourColour
RAL 7035 - Light grey
MaterialMaterial
ABS
Ingress ProtectionIngress Protection
IP65
MountingMounting
Screw-on
Search

BOPLA BCD 160 CF-7035 (20161435)

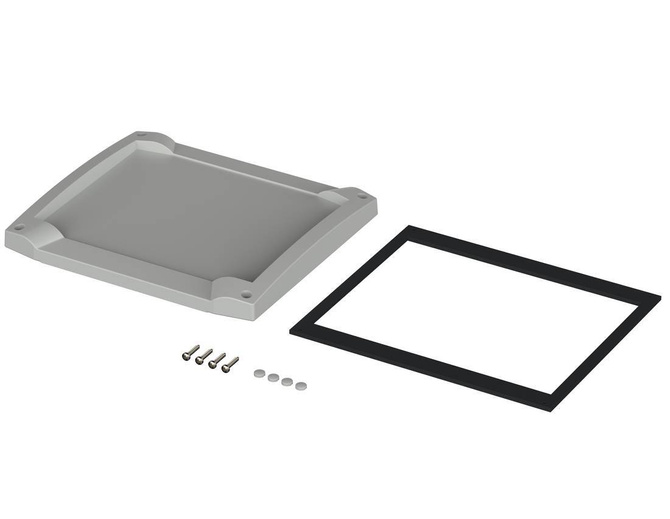

Plastic installation area with a seal for mounting electronics on the doors of distribution cabinets or other fronts. Mounting screws concealed with plastic covers. Recess in the cover for flush mounting of displays and/or keyboards. Maximum protection level IP 65 according to DIN EN 60529 standard achievable if the customer designs the rear part from sheet metal or another material accordingly.

The set includes the installation area, screws, plastic screw covers, and a seal.
