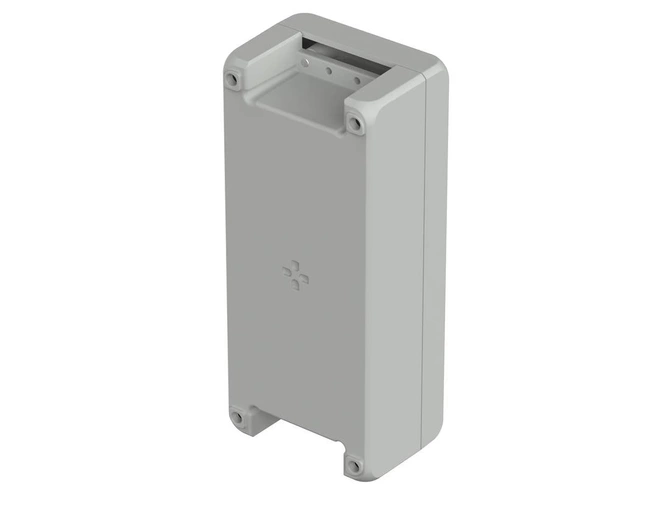

Bopla BA-S 180806 F-7035 (00164125) - enclosure with membrane lid, screwed (199 x 86 x 60 mm)
Bopla BA-S 180806 F-7035 (00164125) - enclosure with membrane lid, screwed (199 x 86 x 60 mm)
Bopla BA-S 180806 F-7035 (00164125) - enclosure with membrane lid, screwed (199 x 86 x 60 mm)
Bopla BA-S 180806 F-7035 (00164125) - enclosure with membrane lid, screwed (199 x 86 x 60 mm)
Bopla BA-S 180806 F-7035 (00164125) - enclosure with membrane lid, screwed (199 x 86 x 60 mm)
Bopla BA-S 180806 F-7035 (00164125) - enclosure with membrane lid, screwed (199 x 86 x 60 mm)

Bopla BA-S 180806 F-7035 (00164125) - enclosure with membrane lid, screwed (199 x 86 x 60 mm)

Product length in millimeters199
Product height in millimetres60
Product width in millimeters86
MaterialAluminum
Ingress ProtectionIP66IP68IP69
Gasket materialNeoprene
Type of coverWith membrane lid
MountingScrew-on
Gasket material
Colour
Type of cover
Mounting
excl. VAT
132,26 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Brand
Symbol
00164125
Product length in millimetersProduct length in millimeters
199
Product height in millimetresProduct height in millimetres
60
Product width in millimetersProduct width in millimeters
86
MaterialMaterial
Aluminum
Ingress ProtectionIngress Protection
IP66
IP68
IP69
Gasket materialGasket material
Neoprene
ColourColour
Light grey - RAL 7035
Type of cover
With membrane lid
MountingMounting
Screw-on
CertificateCertificate
EN 45545-2 [HL 3]
Search

Bopla BA-S 180806 F-7035 (00164125)

The modern industrial aluminum enclosure features a design that simultaneously maintains high protection standards. Secured with screws. A precisely fitted neoprene gasket ensures a high IP protection rating according to DIN EN 60529. It meets the requirements of the railway standard DIN EN 45545-2 regarding the emission of harmful substances during the combustion of the coating. It achieves an impact protection rating of IK07, 08 according to IEC 62262. In terms of shape, the aluminum Bocube Alu enclosure line corresponds with the Bocube plastic enclosures, allowing for a consistent marketing appearance of devices. Colors other than those listed in the catalog are available upon request, including unpainted enclosures. The set includes the top and bottom of the enclosure with mounting screws.

There is an option for additional anti-corrosion protection to meet ISO 9227 standards (so-called salt spray tests).

We also supply size-matched brackets separately for pole mounting (mast mounting), along with steel clamps, mounting plates and pressure compensation membrane.
