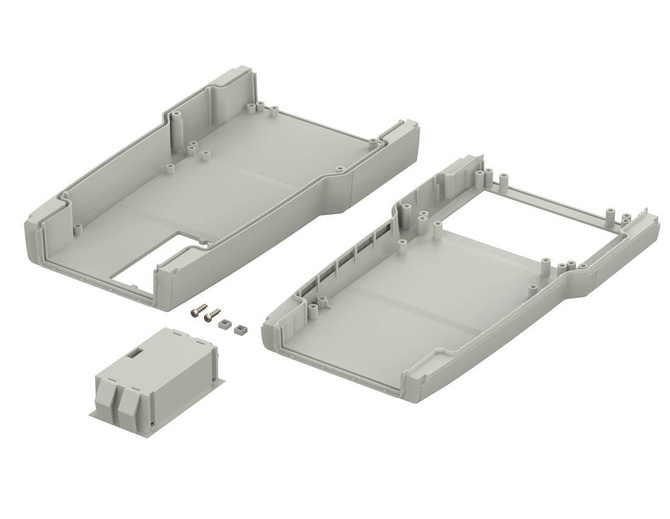

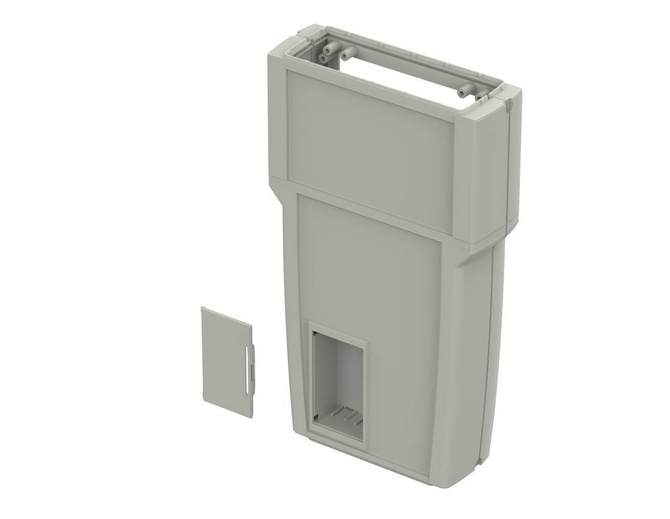

Bopla ART 865 DIS with BE 30 (34186582) - enclosure with membrene keypad area, display opening and battery compartment (236 x 125 x 41 mm)
Bopla ART 865 DIS with BE 30 (34186582) - enclosure with membrene keypad area, display opening and battery compartment (236 x 125 x 41 mm)
Bopla ART 865 DIS with BE 30 (34186582) - enclosure with membrene keypad area, display opening and battery compartment (236 x 125 x 41 mm)
Bopla ART 865 DIS with BE 30 (34186582) - enclosure with membrene keypad area, display opening and battery compartment (236 x 125 x 41 mm)
Bopla ART 865 DIS with BE 30 (34186582) - enclosure with membrene keypad area, display opening and battery compartment (236 x 125 x 41 mm)
Bopla ART 865 DIS with BE 30 (34186582) - enclosure with membrene keypad area, display opening and battery compartment (236 x 125 x 41 mm)

Bopla ART 865 DIS with BE 30 (34186582) - enclosure with membrene keypad area, display opening and battery compartment (236 x 125 x 41 mm)

Product length in millimeters236
Product height in millimetres41
Product width in millimeters125
MaterialABS
Ingress ProtectionIP40IP65
ColourRAL 7038 - Agate grey
Próbkitak
Size
uniwersalny
excl. VAT
92,22 zł
gross
Sold by:5pcs.
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Order a sample
Compare
Drawing - 34186582
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Bopla
Symbol
34186582
Series
Bopla - Arteb
Product length in millimetersProduct length in millimeters
236
Product height in millimetresProduct height in millimetres
41
Product width in millimetersProduct width in millimeters
125
MaterialMaterial
ABS
Ingress ProtectionIngress Protection
IP40
IP65
ColourColour
RAL 7038 - Agate grey
Search

Bopla ART 865 DIS with BE 30 (34186582)

Enclosure with snap closures and screws covered by a plastic cover. Multicolored upper caps (ART 865 KO…) and lower caps (ART 865 KU…) ordered separately. Special service key (Demontagewerkzeug) for opening the enclosure. After applying the separately sold seal set ART 865-DI, the protection level can be raised to IP65. Size-matched display screen (ART 800 DIS) made of polycarbonate along with adhesive material for the enclosure. Integrated battery coomaptment BE 30 in a enclosure.
