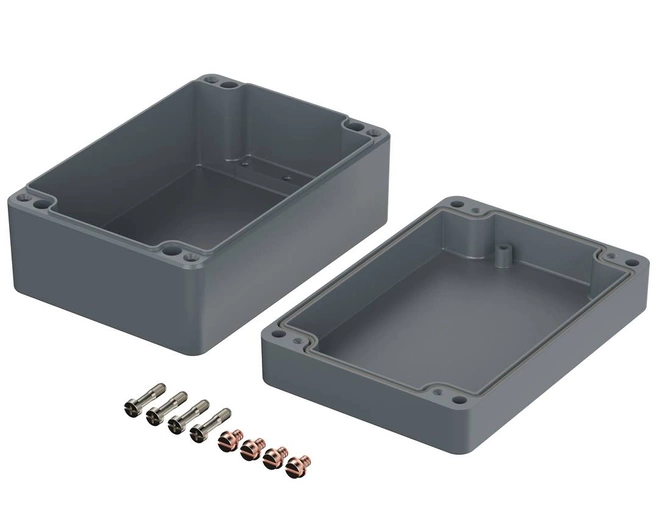

Bopla A 126 (01126000) - aluminium enclosure with neoprene seal (200 x 140 x 91 mm)
Bopla A 126 (01126000) - aluminium enclosure with neoprene seal (200 x 140 x 91 mm)
Bopla A 126 (01126000) - aluminium enclosure with neoprene seal (200 x 140 x 91 mm)
Bopla A 126 (01126000) - aluminium enclosure with neoprene seal (200 x 140 x 91 mm)

Bopla A 126 (01126000) - aluminium enclosure with neoprene seal (200 x 140 x 91 mm)

Product length in millimeters200
Product height in millimetres91
Product width in millimeters140
MaterialAluminum
Ingress ProtectionIP66
Gasket materialNeoprene
net
279,14 zł
incl. VAT
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Brand
Symbol
01126000
Product length in millimetersProduct length in millimeters
200
Product height in millimetresProduct height in millimetres
91
Product width in millimetersProduct width in millimeters
140
MaterialMaterial
Aluminum
Ingress ProtectionIngress Protection
IP66
Gasket materialGasket material
Neoprene
ColourColour
RAL 7001 - Silver grey
CertificateCertificate
EN 45545-2 [HL 3]
Search

Bopla A 126 (01126000)

A classic enclosure manufactured from high-quality aluminum alloy G Al. Si 12, with careful attention to the quality of gasket installation, resulting in compliance with rigorous standards for the protection of customers' end devices. The molded neoprene gasket ensures a high degree of protection, at least IP66 according to DIN EN 60529 standards. Alternatively, higher temperature resistance can be achieved using a silicone gasket. Upon request, a special EMC gasket version is available to ensure a conductive connection between the cover and the base. The housing meets the requirements of R1 or R7 according to DIN EN 45545-2 standards for hazard level HL3 and UL. E 196 706, details in the material data sheets. Impact resistance level IK09 has been achieved according to IEC 62262 standards. Unpainted enclosures with a molded gasket in the lid and additional corrosion protection (surtec coating) are available on request. A waterproof version (SWB) is available upon special request, while the standard version already complies with railway requirements according to DIN EN 45545.

Matching mounting accessories such as SCHD hinges, MA mounting plates, and WL wall brackets are included, including MH for masts.

The scope of delivery includes the base and lid with screws, as well as four earthing screws.
