Brand
Symbol
4969101052
Producer code
5900000449586
Series
Product length in millimeters

105
Product width in millimeters

86
Product height in millimetres

57
Material

Polycarbonate - PC UL 94 V-0
Modules

6
Ingress Protection

IP20
Flammability - UL Standard
UL 94 V-0
Colour

RAL 7035 - Light grey
RAL 9005 - Jet black
Norm

DIN 43880
Type of cover

With hole at base and on the step
Ventilation

No

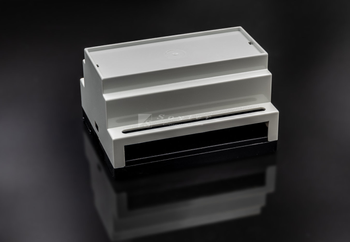

Bernic Series 1050, 6 module enclosure (4969101052)
Classic six-module stepped enclosure meeting DIN 43880 standard for dimensions of built-in installation devices for mounting in distribution boards, measuring stations, etc., as well as DIN EN 50 022 standard for snap-on mounting on DIN rails. Inside the enclosure, there are guides for PCB mounting and mounting studs in the base. As standard, the enclosure is made of high-quality polycarbonate meeting UL 94 V0 certification requirements.Full lid with a holes at the base and on the step. The holes are used for mounting screw connections without the need to mill the enclosure. The lid contains numbers 1 to 18 and 19 to 36, which allows you to mark the pins of the terminal connectors.
The set includes a complete enclosure consisting of a gray top part and a black base part along with a mounting bracket for DIN rail and screws. The wall mounting bracket is offered separately. Upon special request, we offer mechanical fitting of connectors, keyboards, and milling along with final execution documentation with calculated tolerances. Feel free to contact us.
