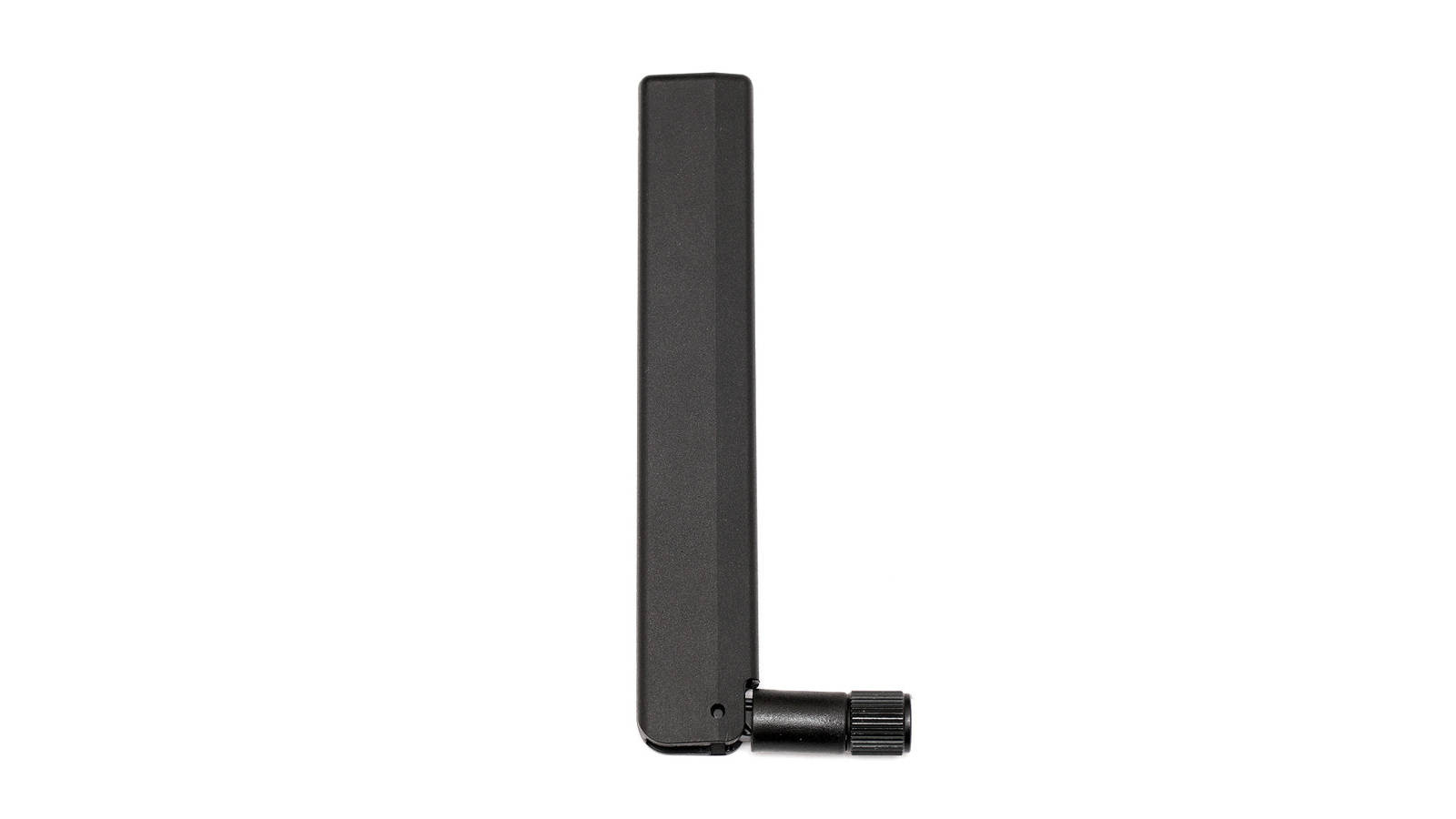

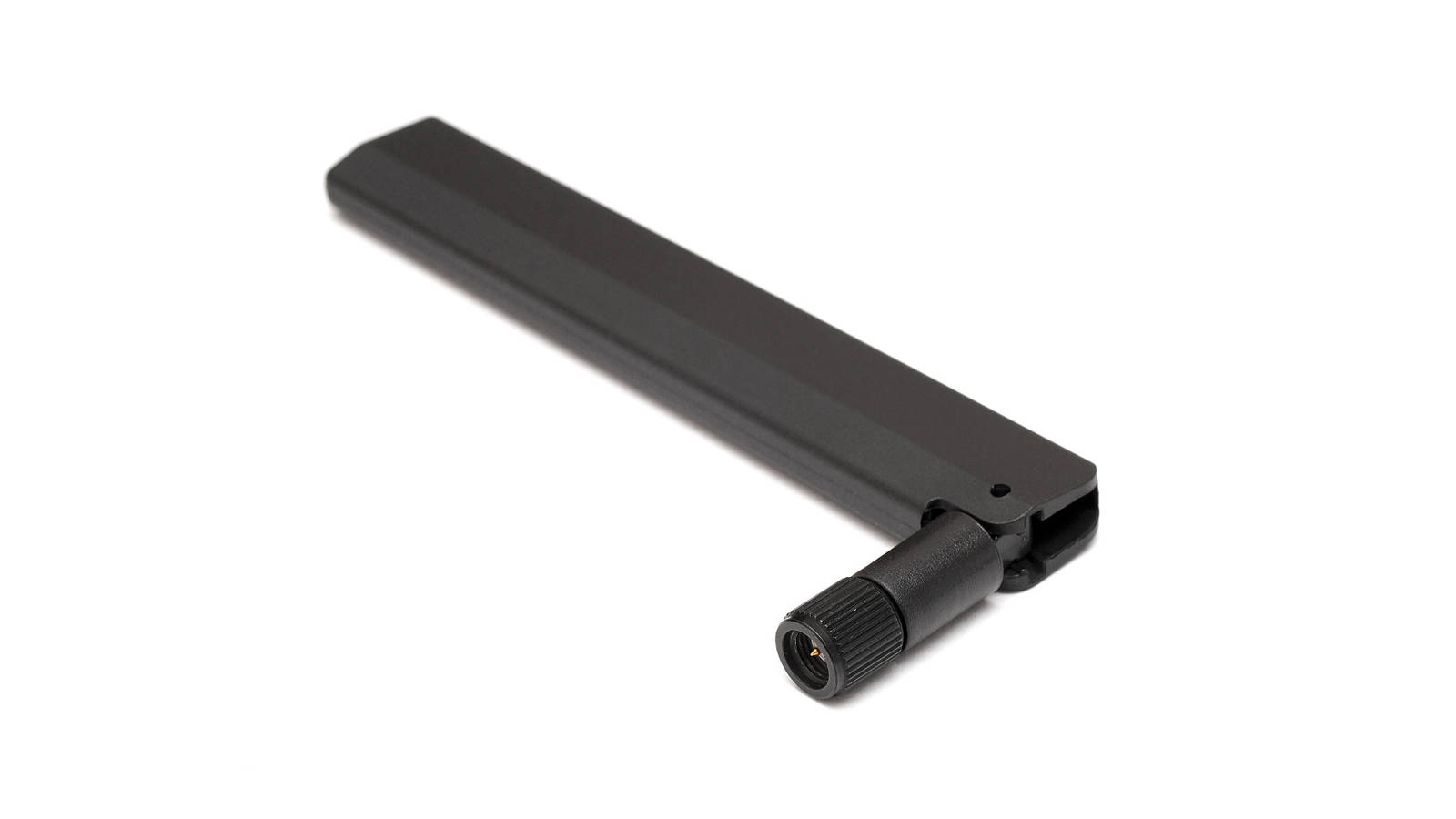

2J Antennas 2JW1124-C952B - 4G antenna
2J Antennas 2JW1124-C952B - 4G antenna
2J Antennas 2JW1124-C952B - 4G antenna
2J Antennas 2JW1124-C952B - 4G antenna

2J Antennas 2JW1124-C952B - 4G antenna

Antenna connector typeSMA male
MountingConnector
excl. VAT
30,00 zł
gross
14 days for easy returns
Safe shopping
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Symbol
2JW1124-C952B
Producer code
5900000788203
Antenna connector typeAntenna connector type
SMA male
MountingMounting
Connector
TechnologyTechnology
LTE
UMTS
GSM
NB-IoT
PositioningPositioning
External
Product height in millimetresProduct height in millimetres
135
Product width in millimetersProduct width in millimeters
19
Product diameter in millimetresProduct diameter in millimetres
10
Temperature rangeTemperature range
-40...+85°C
Frequency
698 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
Max. VSWR
2,3
Max. gain
2,9 dBi
Polarisation
Linear
Radiation pattern
Omni-directional
Impedance
50 Ohm
Search

2J Antennas 2JW1124-C952B

2JW1124-C952B is an external, hinged-connector-mounted antenna from 2J Antennas, optimized for 4G as well as supporting 3G, 2G and LPWA standards. The antenna supports frequencies from 698-960 MHz, 1710-2170 MHz, 2500-2700 MHz bands. The product dimensions are 135 × 19 × Φ 10 mm. SMA male-type connector. The operating temperature range of the antenna is -40...+85°C.
