Details
Parametry
Find similar products
Brand
Symbol
2JW1102-C943B
Producer code
5900000821252
Antenna connector type

RP-SMA male
Mounting

Hinged connector
Technology

ISM
IEEE 802.15.4
Bluetooth
WiFi
LoRa
Positioning

External
Product height in millimetres

135
Product width in millimeters

19
Product diameter in millimetres

10
Temperature range

-40...+85°C
Frequency
2410 - 2490 MHz
4920 - 7125 MHz
Radiation pattern
Omni-directional
Polarisation
Linear
Max. VSWR
2
Max. gain
4,1 dBi
Impedance
50 Ohm

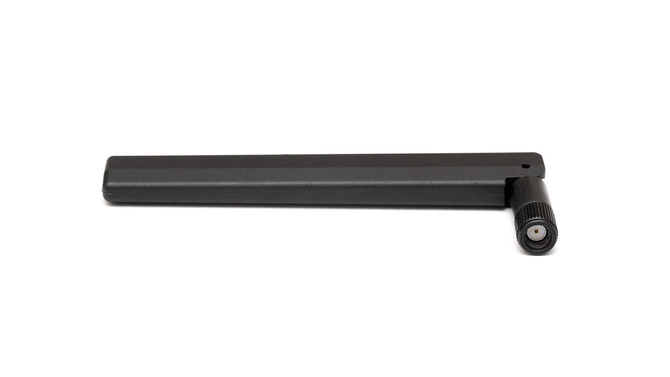

2J Antennas 2JW1102-C943B
2JW1102-C943B is an external, hinged-connector-mounted antenna from 2J Antennas, optimized for ISM as well as supporting ZigBee, SigFox, WiFi, Bluetooth and LoRa standards. The antenna supports frequencies from 2410-2490 MHz, 4920-7125 MHz bands. The product dimensions are Φ 10 × 135 × 19 mm. RP-SMA male-type connector. The operating temperature range of the antenna is -40...+85°C.
