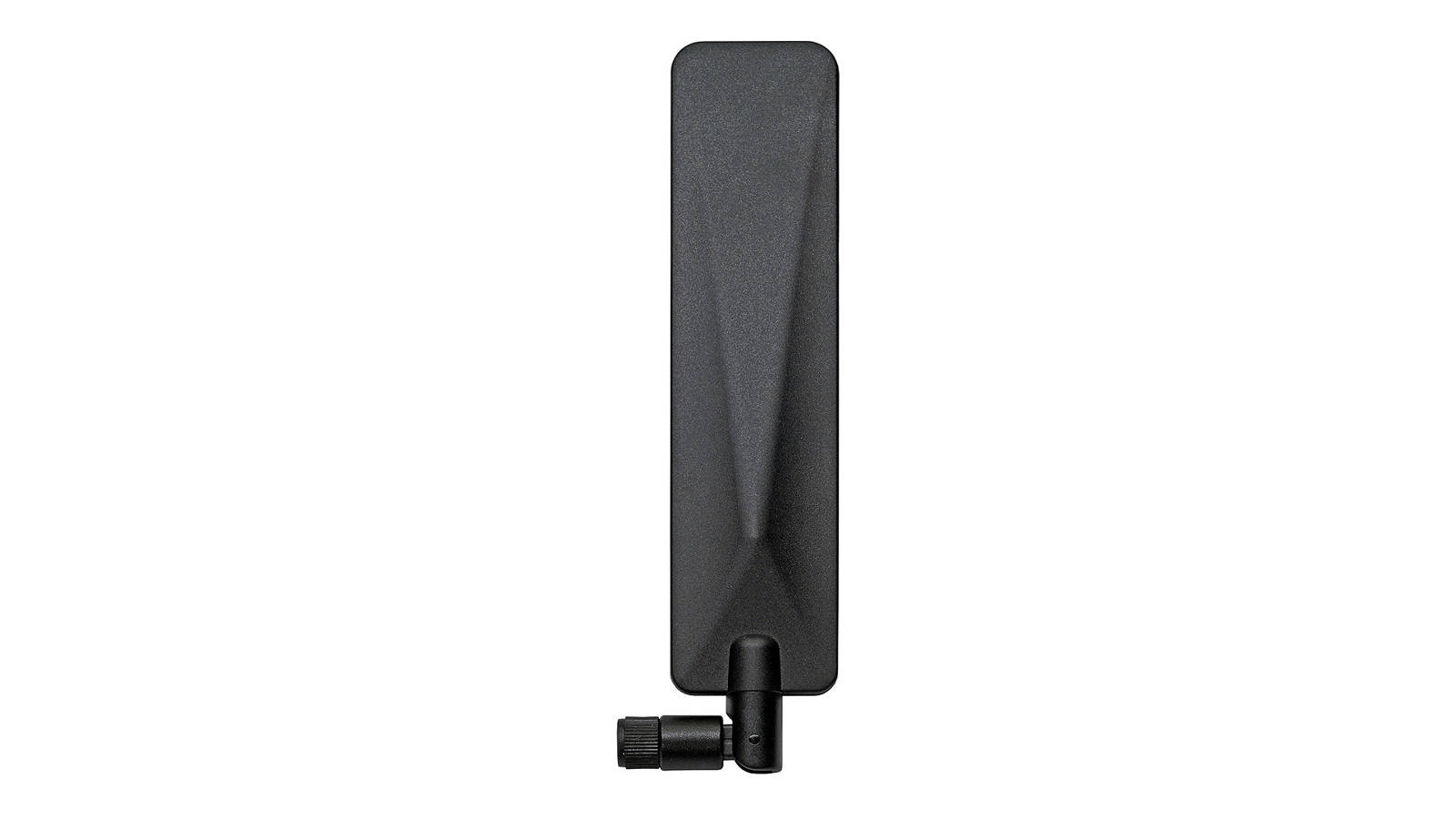

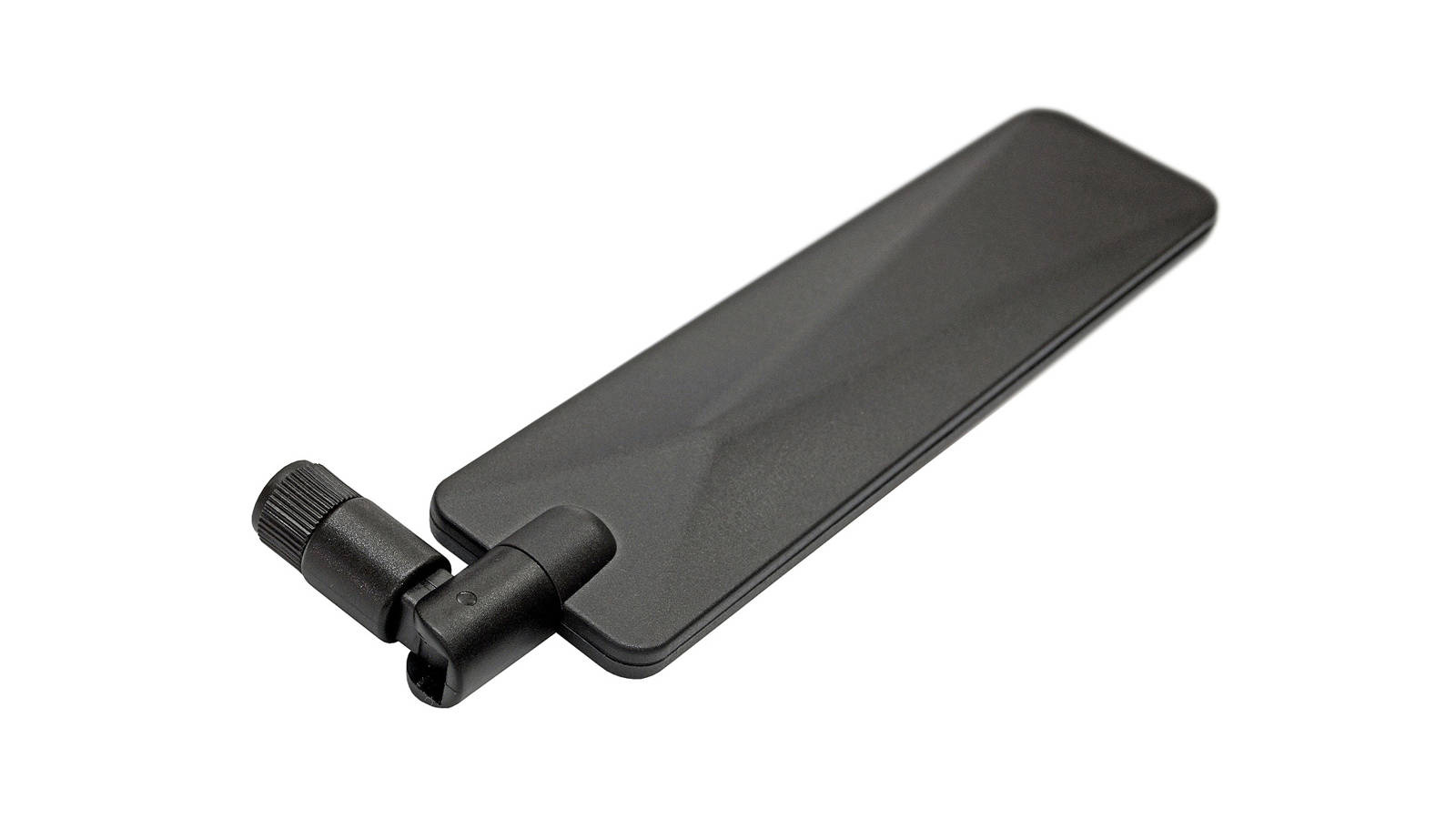

2J Antennas 2JW0180z-C868B - 5G antenna
2J Antennas 2JW0180z-C868B - 5G antenna
2J Antennas 2JW0180z-C868B - 5G antenna
2J Antennas 2JW0180z-C868B - 5G antenna

2J Antennas 2JW0180z-C868B - 5G antenna

Antenna connector typeSMA male
MountingHinged connector
Technology5G - Sub-6 GHzLTEUMTSGSMNB-IoT
PositioningExternal
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 2JW0180z-C868B
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JW0180z-C868B
Producer code
5900000821412
Antenna connector typeAntenna connector type
SMA male
MountingMounting
Hinged connector
TechnologyTechnology
5G - Sub-6 GHz
LTE
UMTS
GSM
NB-IoT
PositioningPositioning
External
Product height in millimetresProduct height in millimetres
171
Product width in millimetersProduct width in millimeters
13.8
Product length in millimetersProduct length in millimeters
38
Temperature rangeTemperature range
-40...+85°C
Frequency
410 - 496 MHz
617 - 960 MHz
1427 - 2690 MHz
3300 - 5000 MHz
5150 - 5925 MHz
Radiation pattern
Omni-directional
Polarisation
Linear
Max. gain
4,5 dBi
Max. VSWR
4,1
Impedance
50 Ohm
Search

2J Antennas 2JW0180z-C868B

2JW0180z-C868B is an external, hinged-connector-mounted antenna from 2J Antennas, optimized for 5G as well as supporting 4G, 3G, 2G and LPWA standards. The antenna supports frequencies from 410-496 MHz, 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz bands. The product dimensions are 171 × 38 × 13.8 mm. SMA male-type connector. The operating temperature range of the antenna is -40...+85°C.
