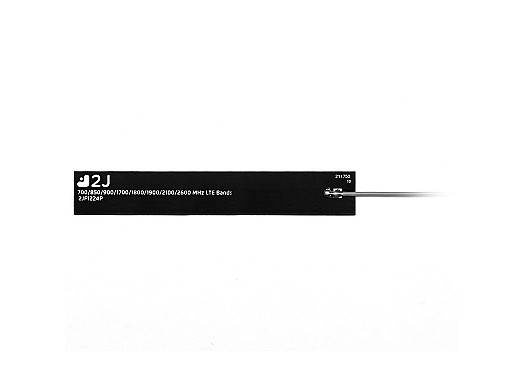

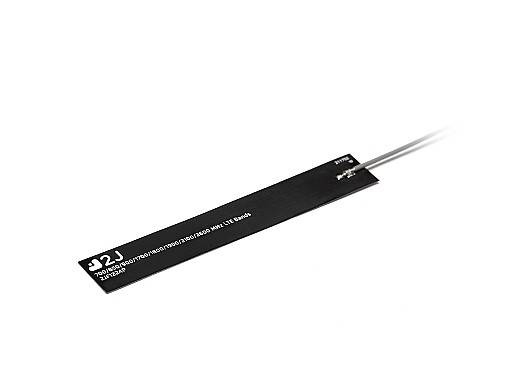

2J Antennas 2JF1224P - 4G antenna
2J Antennas 2JF1224P - 4G antenna
2J Antennas 2JF1224P - 4G antenna
2J Antennas 2JF1224P - 4G antenna

2J Antennas 2JF1224P - 4G antenna

Antenna typeFPC
Antenna connector typeIPEX
TechnologyLTEUMTSNB-IoTGSM
MountingAdhesive
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
Find out in which store you can check the product and buy it right away
2J Antennas 2JF1224P - 4G antenna
2J Antennas 2JF1224P - 4G antenna
uniwersalny
Safe shopping
Compare
Product Data Sheet - 2JF1224P
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
2J Antennas
Symbol
2JF1224P-015MC137-UFL
Producer code
5900000788241
Product length in millimetersProduct length in millimeters
90
Impedance
50 Ohm
Product width in millimetersProduct width in millimeters
14
Temperature rangeTemperature range
-40...+85°C
Antenna typeAntenna type
FPC
Antenna connector typeAntenna connector type
IPEX
Product height in millimetresProduct height in millimetres
0.2
TechnologyTechnology
LTE
UMTS
NB-IoT
GSM
Cable length (in milimeters)
150
MountingMounting
Adhesive
PositioningPositioning
Internal
Radiation pattern
Omni-directional
Frequency
698 - 960 MHz
1710 - 2170 MHz
2500 - 2700 MHz
Max. VSWR
2,5
Max. gain
3,7 dBi
Polarisation
Linear
Search

2J Antennas 2JF1224P

2JF1224P is an embedded, adhesive-mounted, FPC antenna from 2J Antennas, optimized for 4G and supporting 3G, 2G and LPWA standards as well. The antenna supports frequencies from 698-960 MHz, 1710-2170 MHz, 2500-2700 MHz ranges. The product dimensions are 90 × 14 × 0.2 mm, cable 150 mm with an U.FL connector. The operating temperature range of the antenna is -40...+85°C.
